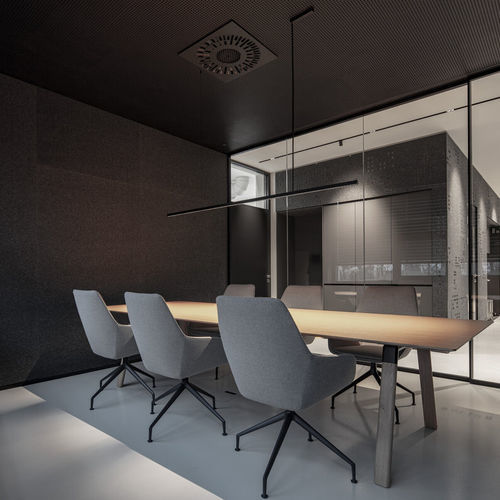

Pendant lamp MINO 25

metalcontemporarycorded

Quick info

• Colour temperatures: 3000 K, 4000 K
• CRI: ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
• UGR classes: UGR ≤ 16, UGR ≤ 19
• Efficiency: up to 168 lm/W
• Lifespan: L90 / 100000 h
• Cover options: Opal, Wideflood
• Dimming / control: DALI-2
• Protection class: IP20

Description
Luminaire housing in extruded aluminium profile with angular design and slim cross-section 25 x 25 mm; no visible screws; finish available raw aluminium or powder coated. Pendant mounting with height-adjustable cable suspension; includes flat cable for power supply. Available with micro-faceted aluminium-vapourised reflector or configured with single LED light points. Recessed light point plane reduces direct glare. Special lens technology and inserted lenses provide wide flood radiation and options for precise symmetrical distribution. Opal cover option for homogeneous illumination. Converter (driver) integrated within the luminaire housing. Canopy provided for through wiring.

Light distribution & optics

• Direct suspended light distribution
• Available optics: louver, spotline, opal (homogeneous)
• Inserted lenses with wide flood characteristic and options for precise symmetrical distribution
• Glare control via recessed light point plane

Available variants / configurations

• Covers: Opal, Wideflood
• Optics: Louver, Spotline, Opal (Lambertian)
• Lengths: 1,004 mm; 2,004 mm; 2,754 mm
• System power examples: 10.7 W, 20.6 W, 27.5 W
• System efficacies encountered: 133 lm/W, 152 lm/W, 162 lm/W, 138 lm/W, 158 lm/W, 168 lm/W
• CRI options: ≥ 80 and ≥ 90

Colours & inset options

• Body colours: signal white, signal black, aluminium raw
• Inset options: chrome, traffic white, jet black, black

Controls & electrical

• DALI-2 dimming available
• Converter integrated into luminaire housing
• Canopy provided for through wiring

Approvals & environment

• IP rating: IP20
• Lifetime spec: L90 / 100000 h

Notes

• Release date not defined yet for some product codes (MRD TBD)

Technical specifications

• Model family: MINO 25
• Housing: extruded aluminium profile, angular design
• Cross-section / dimension: 25 x 25 mm
• Finish: raw aluminium or powder coated
• Mounting: pendant fitting with height-adjustable cable suspension; includes flat cable for power supply
• Reflector: micro-faceted, aluminium-vapourised reflector or LED single light point configuration
• Optics: inserted lenses, wide flood and precision symmetrical distribution
• Glare control: recessed light point plane
• Cover options: opal cover (homogeneous illumination), wideflood
• Control: DALI-2
• Colour temperatures: 3000 K, 4000 K
• Colour rendering: CRI ≥ 80 and CRI ≥ 90 (3 SDCM)
• Performance: up to 168 lm/W (config dependent)
• System power examples: 10.7 W, 20.6 W, 27.5 W
• Lengths available: 1,004 mm; 2,004 mm; 2,754 mm
• Lifetime: L90 / 100000 h
• IP rating: IP20
• Included components: integrated converter; canopy for through wiring
• Design details: no visible screws; slim pendant luminaire
