Recessed ceiling downlight MINO 25
LEDrectangularlinear

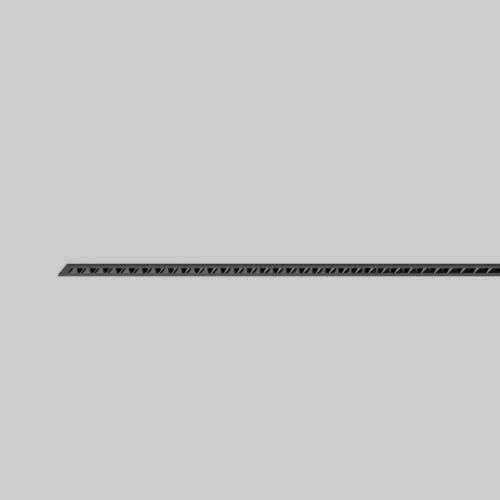

Recessed ceiling downlight - MINO 25 - XAL - LED / rectangular / linear

Recessed ceiling downlight - MINO 25 - XAL - LED / rectangular / linear - image - 2

Recessed ceiling downlight - MINO 25 - XAL - LED / rectangular / linear - image - 3

Recessed ceiling downlight - MINO 25 - XAL - LED / rectangular / linear - image - 4

Recessed ceiling downlight - MINO 25 - XAL - LED / rectangular / linear - image - 5

Recessed ceiling downlight - MINO 25 - XAL - LED / rectangular / linear - image - 6

Recessed ceiling downlight - MINO 25 - XAL - LED / rectangular / linear - image - 7

Recessed ceiling downlight - MINO 25 - XAL - LED / rectangular / linear - image - 8

Recessed ceiling downlight - MINO 25 - XAL - LED / rectangular / linear - image - 9

Recessed ceiling downlight - MINO 25 - XAL - LED / rectangular / linear - image - 10

Recessed ceiling downlight - MINO 25 - XAL - LED / rectangular / linear - image - 11

Add to favorites

Compare this product

Characteristics

Type

recessed ceiling

Light source

LED

Shape

rectangular, linear

Protection class

IP20

Interior/exterior use

indoor

Applications

commercial, home

Material

aluminum

Color

white, black, silver-colored

Dimmable

dimmable

Style

contemporary

Number of lights

single, multiple

Other characteristics

DALI-2

Height

25 mm
(1 in)

Length

1,004 mm
(40 in)

Width

25 mm
(1 in)

Color temperature

Max.: 4,000 K

Min.: 3,000 K

Color rendering index (CRI)

Max.: 90 unit

Min.: 80 unit

Description

Product

MINO 25 recessed — recessed ceiling luminaire with trim.

Quickinfo

Colour temperatures: 3000 K, 4000 K
CRI: ≥ 80; optional CRI ≥ 90 (3 SDCM for high-CRI variants)
UGR: ≤ 16 or ≤ 19 depending on configuration
Up to 168 lm/W (variant dependent)
Lifetime: L90 / 100,000 h
DALI-2 dimming (integrated driver)
Cover options: Opal, Wideflood
IP20

Description

Extruded aluminium housing with angular design; recessed installation with trim; surface raw or powder-coated.
High-quality micro-faceted aluminium-vapourised reflector or single LED light-point arrangement.
Recessed light point plane for reduced glare; enhanced efficiency via dedicated lens technology.
Inserted lenses provide wide-flood radiation; precise symmetrical distribution; opal cover option for homogeneous illumination.
Integrated driver located in the luminaire housing; energy-efficient LEDs with high colour rendering.

Available variants / Options

Trim types: louver, spotline, opal
Trim/housing colours: signal white, signal black, raw aluminium
Inset / reflector finishes: chrome, traffic white, jet black, black (various inset reflector colours available)
Multiple lumen/efficiency variants and lengths (examples: 1,004 mm; 2,004 mm; 2,754 mm)
Product variants listed as "MINO 25 louver trim", "MINO 25 opal trim", "MINO 25 spotline trim" with specific article numbers per configuration
Release date: many variants MRD TBD

Light distribution & Optics

Direct recessed distribution
Optics: micro-faceted reflector, inserted lenses for wide flood, precise symmetrical distribution or homogeneous opal cover

Downloads & Data (available per variant)

Datasheets, DWG (2D), IES / LDT files and aggregated download packages provided per article variant.

Technical specifications

Type: recessed ceiling luminaire with trim
Housing: extruded aluminium profile; raw or powder-coated finish
Optics: micro-faceted aluminium-vapourised reflector; special lens technology; inserted lenses
Light sources: energy-efficient LEDs with high colour rendering
Colour temperatures: 3000 K, 4000 K
Colour rendering index: CRI ≥ 80; optional CRI ≥ 90
Colour consistency: 3 SDCM for higher CRI variants
Efficiency: up to 168 lm/W depending on variant
Lifetime: L90 / 100,000 h
Dimming: DALI-2 (integrated driver)
Covers: Opal or Wideflood
Protection class: IP20
Glare: recessed light point plane with UGR ≤ 16 or ≤ 19 depending on configuration
Variants: multiple trims, inset/reflector finishes and lengths (e.g., 1,004 mm; 2,004 mm; 2,754 mm)
Release status: many article variants marked as "New" with MRD TBD
