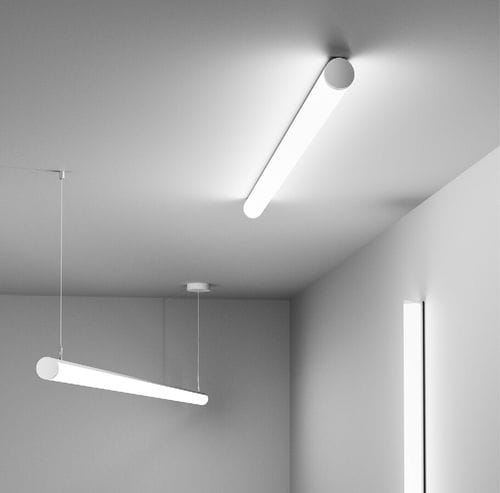

Modern ceiling light TUBO 60

linearaluminumextruded aluminum

Description
Surface-mounted linear luminaire with extruded aluminium supporting profile and aluminium end caps. Available in raw or powder-coated finish. Designed for wall or ceiling installation. Light control is provided by a high-quality lens system for homogeneous illumination. Optional cylindrical opal cover or clear cylindrical cover with linear prismatic optic. Energy-efficient LEDs with very good colour rendering.

Quickinfo

• Colour temperature: 3000 K, 4000 K
• CRI: CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
• Luminous flux: up to 3,280 lm/m
• Efficiency: up to 142 lm/W
• Lifespan: L90 / 50000 h
• Cover options: Clear Cover, Opal
• Dimming: DALI-2
• Protection class: IP20

Mounting & features

• Supporting profile in extruded aluminium with aluminium end cap
• Suitable for wall or ceiling mounting
• Driver integrated
• Available as system solution (profile / system luminaires)
• Light control via high-quality lens system for maximum, homogeneous illumination
• Optional cylindrical opal cover or clear cylindrical cover with linear prismatic optic
• Uniform illumination

Available colours

• pure white
• jet black
• aluminium raw

Technical specifications

• Model family: TUBO 60
• Material: extruded aluminium profile; aluminium end cap
• Finish: surface raw or powder coated
• Colour temperatures: 3000 K, 4000 K
• CRI options: CRI ≥ 80; CRI ≥ 90 (3 SDCM)
• Luminous flux: up to 3,280 lm/m
• System efficacy: up to 142 lm/W (dependent on configuration)
• Service life: L90 at 50,000 h
• Dimming protocol: DALI‑2
• Ingress protection: IP20
• Cover variants: Clear cover, Opal cover, Clear cylindrical cover with linear prismatic optic
• Mounting: wall or ceiling
• Available nominal lengths (examples): 625 mm, 1,210 mm, 1,500 mm, 2,375 mm
• Light distribution types: direct (various optics/lens systems)
