IP20 profile light POSTERLEDhomecommercial
Add to favorites
Compare this product
Characteristics
- Protection class
- IP20
- Light source
- LED
- Application
- commercial, home
- Interior/exterior use
- indoor
- Type
- hanging
- Shape
- round
- Height
2,000 mm
(79 in)- Length
1,250 mm
(49 in)- Width
50 mm
(2 in)- Power
17 W
- Luminous flux
1,700 lm
- Color temperature
3,000 K
- Color rendering index (CRI)
80 unit
Description
Description

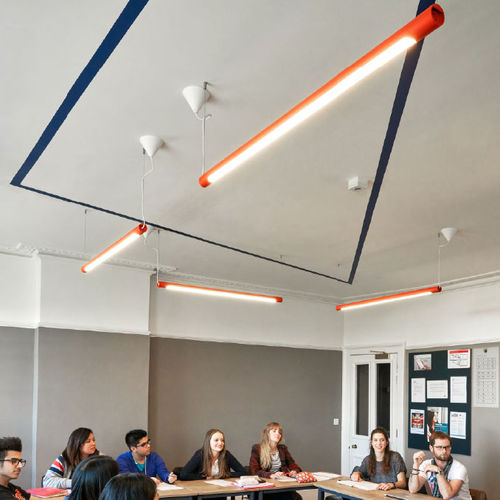

Poster is a suspended linear LED luminaire designed to integrate with visible piping under ceilings, reproducing the profile of classical tubing while providing functional architectural lighting. The extruded painted aluminium body and opal acrylic diffuser produce uniform illumination. The LED module has an expected life of approx. 50,000 hours.
Finish
Body in painted aluminium. Diffuser in opal acrylic.
LED info
System power: 17W. Luminaire luminous flux: 1700 lm. CCT: 3000K. SDCM: 3. CRI >80. Approx. lifetime: 50,000 hours.
Installation
Suspended through wire. Turnable 180°.
Connection
2.5 m cable with plug. Dimmable version supplied without plug.
Classification
IP 20.
Design
TAF 2014.
Standard colours
White and Black. Other colours on request.
Product specification
W | FINISH | ART.
LED 1700LM/17W | White | 8315-3-01
LED 1700LM/17W | White | 8315-3-01HFF
LED 1700LM/17W | Black | 8315-3-06
LED 1700LM/17W | Black | 8315-3-06HFF
HFF = Dimmable: DALI, SwitchDim, DSI.
Technical specifications
Poster is a suspended linear LED luminaire designed to integrate with visible piping under ceilings, reproducing the profile of classical tubing while providing functional architectural lighting. The extruded painted aluminium body and opal acrylic diffuser produce uniform illumination. The LED module has an expected life of approx. 50,000 hours.
Finish
Body in painted aluminium. Diffuser in opal acrylic.
LED info
System power: 17W. Luminaire luminous flux: 1700 lm. CCT: 3000K. SDCM: 3. CRI >80. Approx. lifetime: 50,000 hours.
Installation
Suspended through wire. Turnable 180°.
Connection
2.5 m cable with plug. Dimmable version supplied without plug.
Classification
IP 20.
Design
TAF 2014.
Standard colours
White and Black. Other colours on request.
Product specification
W | FINISH | ART.
LED 1700LM/17W | White | 8315-3-01
LED 1700LM/17W | White | 8315-3-01HFF
LED 1700LM/17W | Black | 8315-3-06
LED 1700LM/17W | Black | 8315-3-06HFF
HFF = Dimmable: DALI, SwitchDim, DSI.
Technical specifications
- Body: painted aluminium
- Diffuser: opal acrylic
- System power: 17W
- Luminaire luminous flux: 1700 lm
- CCT: 3000K
- SDCM: 3
- CRI: >80
- Approx. lifetime: 50,000 hours
- Installation: suspended through wire; turnable 180°
- Connection: 2.5 m cable with plug; dimmable version without plug
- Classification: IP 20
- Design: TAF 2014
- Standard colours: White, Black; other colours on request
- Variants: White - Art. 8315-3-01; White (HFF) - Art. 8315-3-01HFF; Black - Art. 8315-3-06; Black (HFF) - Art. 8315-3-06HFF
- HFF = Dimmable: DALI, SwitchDim, DSI
