Pendant lamp HOOP
metalpainted aluminumwire

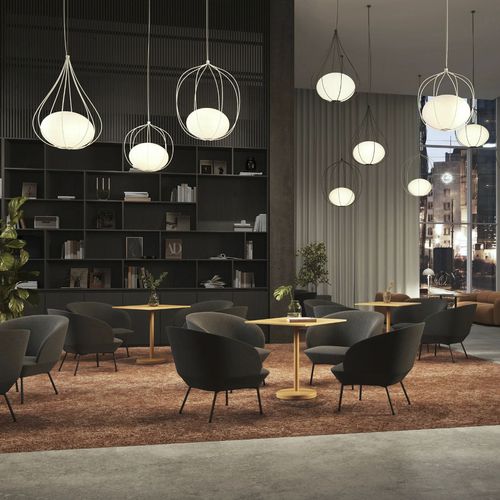

Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire - image - 2
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire - image - 3
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire - image - 4
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire - image - 5
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire - image - 6
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire - image - 7
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire - image - 8
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire - image - 9
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire - image - 10
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire - image - 11
Pendant lamp - HOOP - ZERO - metal / painted aluminum / wire - image - 12
Add to favorites
Compare this product
Go to the ZERO website for more information

Characteristics

Type
pendant
Material
metal, painted aluminum, wire, glass, opal
Style
contemporary
Power source
wireless
Location
indoor
Market
home, commercial
Base type
straight
Diffuser shape
round
Protection class
IP20
Color
white, black, orange
Light source
LED
Number of lights
single
Height

Max.: 938 mm
(36.9 in)

Min.: 650 mm
(25.6 in)

Description

Product
Painted aluminum and metal. Inner shade in matt opal glass.

LED information
System power 18W. Luminaire luminous flux 1715LM. CCT 3000K. SDCM 3. CRI >80.

Installation
Suspended through wire. 8423, 8425, 8427 - Including white painted ceiling box. 8424, 8426, 8428 - Including ceiling hook and ceiling cup.

Connection
8423, 8425, 8427 - Snap-in terminal block 5x4mm2. 8424, 8426, 8428 - Terminal block 3x2,5mm2.

Classification
IP 20.

Design
Front 2018 (Hoop small). Front 2023 (Hoop large & drop).

Standard colours
White, Black, Blue, Orange. Other colours on request.

Product specification — Hoop Small
W | COLOUR | ART.
LED 1715LM/18W | White | 8425-3-01
LED 1715LM/18W | White | 8425-3-01HFF
LED 1715LM/18W | Black | 8425-3-06
LED 1715LM/18W | Black | 8425-3-06HFF
LED 1715LM/18W | Blue | 8425-3-08
LED 1715LM/18W | Blue | 8425-3-08HFF
LED 1715LM/18W | Orange | 8425-3-41
LED 1715LM/18W | Orange | 8425-3-41HFF
E27/max 20W | White | 8426-3-01
E27/max 20W | Black | 8426-3-06
E27/max 20W | Blue | 8426-3-08
E27/max 20W | Orange | 8426-3-41
HFF = Dimmable DALI, DSI or SwitchDim

Product specification — Hoop Drop
W | COLOUR | ART.
LED 1715LM/18W | White | 8423301-30
LED 1715LM/18W | White | 8423301D30
LED 1715LM/18W | Black | 8423306-30
LED 1715LM/18W | Black | 8423306D30
LED 1715LM/18W | Blue | 8423308-30
LED 1715LM/18W | Blue | 8423308D30
LED 1715LM/18W | Orange | 8423341-30
LED 1715LM/18W | Orange | 8423341D30
E27/max 20W | White | 8424301
E27/max 20W | Black | 8424306
E27/max 20W | Blue | 8424308
E27/max 20W | Orange | 8424341
D = Dimmable DALI, DSI or SwitchDim

Product specification — Hoop Large
W | COLOUR | ART.
LED 1715LM/18W | White | 8427301-30
LED 1715LM/18W | White | 8427301D30
LED 1715LM/18W | Black | 8427306-30
LED 1715LM/18W | Black | 8427306D30
LED 1715LM/18W | Blue | 8427308-30
LED 1715LM/18W | Blue | 8427308D30
LED 1715LM/18W | Orange | 8427341-30
LED 1715LM/18W | Orange | 8427341D30
E27/max 20W | White | 8428301
E27/max 20W | Black | 8428306
E27/max 20W | Blue | 8428308
E27/max 20W | Orange | 8428341
D = Dimmable DALI, DSI or SwitchDim

Technical specifications
  • Material: Painted aluminum and metal
  • Inner shade: Matt opal glass
  • System power: 18 W (LED)
  • Luminaire luminous flux: 1715 LM
  • Correlated Colour Temperature (CCT): 3000 K
  • Colour consistency: SDCM 3
  • Colour Rendering Index (CRI): > 80
  • Ingress Protection: IP 20
  • Mounting: Suspended through wire; specific kits vary (ceiling box, ceiling hook and cup depending on article)
  • Electrical connection: Snap-in terminal block 5x4 mm2 (for 8423, 8425, 8427) or terminal block 3x2.5 mm2 (for 8424, 8426, 8428)
  • Socket option: E27 / max 20W for designated variants
  • Dimming: HFF / D or D-type options = Dimmable (DALI, DSI or SwitchDim)
  • Available colours: White, Black, Blue, Orange (other colours on request)
