Contemporary ceiling light GRID
squaremetalperforated sheet metal

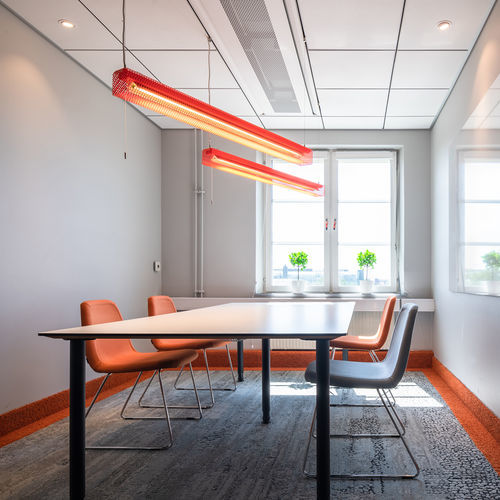

Contemporary ceiling light - GRID - ZERO - square / metal / perforated sheet metal
Contemporary ceiling light - GRID - ZERO - square / metal / perforated sheet metal
Contemporary ceiling light - GRID - ZERO - square / metal / perforated sheet metal - image - 2
Contemporary ceiling light - GRID - ZERO - square / metal / perforated sheet metal - image - 3
Contemporary ceiling light - GRID - ZERO - square / metal / perforated sheet metal - image - 4
Contemporary ceiling light - GRID - ZERO - square / metal / perforated sheet metal - image - 5
Contemporary ceiling light - GRID - ZERO - square / metal / perforated sheet metal - image - 6
Contemporary ceiling light - GRID - ZERO - square / metal / perforated sheet metal - image - 7
Contemporary ceiling light - GRID - ZERO - square / metal / perforated sheet metal - image - 8
Contemporary ceiling light - GRID - ZERO - square / metal / perforated sheet metal - image - 9
Add to favorites
Compare this product
Go to the ZERO website for more information

Characteristics

Style
contemporary
Shape
square
Material
metal, perforated sheet metal
Light source
LED
Other characteristics
dimmable
Market
home, commercial
Color
golden, silver-colored, orange, yellow
Protection class
IP20
Power

Min.: 28 W

Max.: 28 W

Luminous flux

Min.: 2,210 lm

Max.: 2,210 lm

Color temperature

Min.: 3,000 K

Max.: 3,000 K

Color rendering index (CRI)

Min.: 80 unit

Max.: 100 unit

Height

96 mm
(4 in)

Length

1,250 mm
(49 in)

Description

Finish
Body with squared metal holes or in expanded metal. The surface has a raw finish with visible weldings through the transparent varnish. Diffuser in opal acrylic is available as accessory. Reflector available as accessory.

LED info
System power 28W. Luminaire luminous flux 2210 lm (see product specification). CCT 3000K (4000K on request). SDCM 3. CRI > 80.

Installation
Suspended through wire.

Connection
Terminal block 5x4 mm2.

Classification
IP20.

Design
Front Design 2012.

Standard colours
Other colours on request.

Product specification
W | MODEL | ART.
LED | |
LED 2210LM/28W | Square holes | 8128-1-XX
LED 2210LM/28W | Square holes | 8128-1-XXHFF
LED 2210LM/28W | Expanded metal | 8129-1-XX
LED 2210LM/28W | Expanded metal | 8129-1-XXHFF
XX = -14 Yellow, -41 Orange, -76 Metal, -77 Gold.
HFF = Dimmable with DALI, DSI, SwitchDim.

Accessories (from product specification)
Reflector LED — ART. 98126-1-82
Pull-switch — ART. 98131-1-82
Pull-switch with dimmer function (only for HFF version) — ART. 98132-1-82

Technical specifications
  • System power: 28W
  • Luminaire luminous flux: 2210 lm
  • Colour temperature (CCT): 3000K (4000K on request)
  • SDCM: 3
  • CRI: >80
  • Installation: suspended through wire
  • Connection: terminal block 5x4 mm2
  • IP rating: IP20
  • Finish options: squared metal holes or expanded metal; raw surface with visible weldings through transparent varnish
  • Optional diffuser: opal acrylic (accessory)
  • Optional reflector: available (accessory, ART. 98126-1-82)
  • Model variants and article codes: Square holes (8128-1-XX / 8128-1-XXHFF), Expanded metal (8129-1-XX / 8129-1-XXHFF)
  • Colour codes: XX = -14 Yellow, -41 Orange, -76 Metal, -77 Gold
  • Dimming (HFF): DALI, DSI, SwitchDim (for HFF variants)
