Hanging light fixture SPRINKLE
LEDlinearIP20

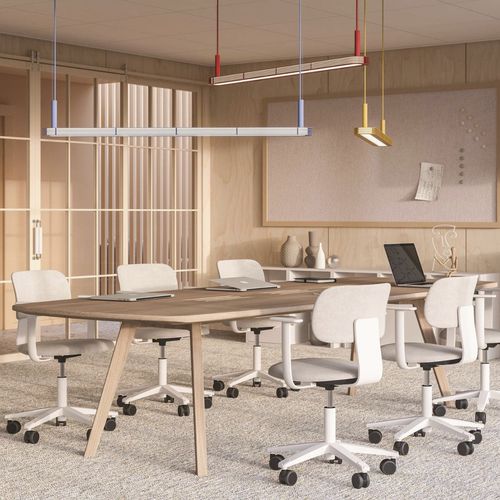

Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20
Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20
Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20 - image - 2
Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20 - image - 3
Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20 - image - 4
Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20 - image - 5
Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20 - image - 6
Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20 - image - 7
Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20 - image - 8
Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20 - image - 9
Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20 - image - 10
Hanging light fixture - SPRINKLE - ZERO - LED / linear / IP20 - image - 11
Add to favorites
Compare this product
Go to the ZERO website for more information

Characteristics

Type
hanging
Light source
LED
Shape
linear
Protection class
IP20
Application
commercial, home
Material
steel, zinc, textile
Color
white, black, blue, brown, red, yellow, purple
Style
contemporary
Dimmable
dimmable
Number of lights
single
Other characteristics
DALI
Height

2,662 mm
(105 in)

Length

1,240 mm
(49 in)

Width

120 mm
(5 in)

Power

21 W

Color temperature

3,000 K

Color rendering index (CRI)

90 unit

Description

Finish
Painted aluminium and steel or zinced steel. The Zinc model may present visible scratches and surface variations; finish can range from glossy to matte and may evolve over time. Textile cable supplied.

LED info
System power: 21W. Luminaire luminous flux: 2350 lm. CCT: 3000K (2700K or 4000K on request). SDCM: 3. CRI: >90. L70: 55,000 h.

Installation
Suspended installation via wire kit.

Connection
2 m textile cable with DCL-plug or terminal block 5x2,5mm2.

Classification
IP 20.

Design
Note Design Studio 2023.

Standard colours
Oyster white, Black, Red, Blue, Brown, Ochre yellow, Zinc. Other colours available on request.

Product specification
PRODUCT | SPECIFICATION | CRI | COLOR | CONTROL | ART.
21W/2350LM | 3000K | 90 | Oyster white | On/off | 12304109-30
21W/2350LM | 3000K | 90 | Oyster white | Dali | 12304109D30
21W/2350LM | 3000K | 90 | Black | On/off | 12304106-30
21W/2350LM | 3000K | 90 | Black | Dali | 12304106D30
21W/2350LM | 3000K | 90 | Red | On/off | 12304107-30
21W/2350LM | 3000K | 90 | Red | Dali | 12304107D30
21W/2350LM | 3000K | 90 | Blue | On/off | 12304108-30
21W/2350LM | 3000K | 90 | Blue | Dali | 12304108D30
21W/2350LM | 3000K | 90 | Brown | On/off | 12304145-30
21W/2350LM | 3000K | 90 | Brown | Dali | 12304145D30
21W/2350LM | 3000K | 90 | Ochre yellow | On/off | 12304155-30
21W/2350LM | 3000K | 90 | Ochre yellow | Dali | 12304155D30
21W/2350LM | 3000K | 90 | Zinc | On/off | 12304184-30
21W/2350LM | 3000K | 90 | Zinc | Dali | 12304184D30

Technical specifications
  • System power: 21W
  • Luminaire luminous flux: 2350 lm
  • CCT: 3000K (2700K or 4000K on request)
  • SDCM: 3
  • CRI: >90
  • L70: 55,000 h
  • Materials: Painted aluminium and steel or zinced steel
  • Finish notes: Zinc variants may show visible scratches and variation between glossy and matte
  • Installation: Suspended via wire
  • Connection: 2 m textile cable with DCL-plug or terminal block 5x2,5mm2
  • IP rating: IP 20
  • Design: Note Design Studio 2023
  • Available colours: Oyster white, Black, Red, Blue, Brown, Ochre yellow, Zinc; other colours on request
