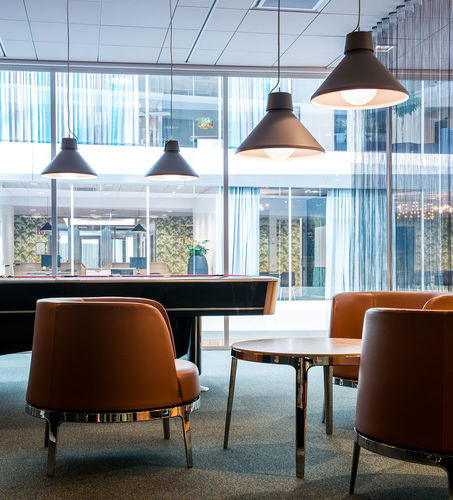

Pendant lamp DAIKANYAMA

wireglassopal

Finish
Shade in painted aluminium. Diffuser in opal glass.

LED information
System power: 13W (integrated LED option). Luminaire luminous flux: 979 lm. CCT: 3000K. SDCM: 3. CRI: >80. L80: 80,000 h. E27 socket versions available up to Max 10W and E27 with dimmable LED options.

Installation
Suspended through wire.

Connection
2.3 m textile cable with DCL plug (on/off) or terminal block (DALI) in ceiling cup. Terminal block: 5x4 mm2.

Classification
IP20.

Design
Thomas Bernstrand, 2013.

Standard colours
White, Black, Red, Yellow, Orange. Other colours on request.

Product specification
POWER / LUMINAIRE FLUX | KELVIN | CRI | COLOR | ART.
E27 socket excluding light source | - | - | - | -
E27/Max 10W | - | - | White | 8259-1-01
E27/Max 10W | - | - | Black | 8259-1-06
E27/Max 10W | - | - | Red | 8259-1-07
E27/Max 10W | - | - | Yellow | 8259-1-14
E27/Max 10W | - | - | Orange | 8259-1-41
E27 socket including dimmable LED light source | - | - | - | -
E27/LED/9W/528LM | 2700 | >80 | White | 8267-1-01
E27/LED/9W/528LM | 2700 | >80 | Black | 8267-1-06
E27/LED/9W/528LM | 2700 | >80 | Red | 8267-1-07
E27/LED/9W/528LM | 2700 | >80 | Yellow | 8267-1-14
E27/LED/9W/528LM | 2700 | >80 | Orange | 8267-1-41
With built in LED module and driver. Possible with Dali dim option | - | - | - | -
LED/13W/979LM | 3000 | >80 | White | 12052101-30
LED/13W/979LM | 3000 | >80 | White | 12052101D30
LED/13W/979LM | 3000 | >80 | Black | 12052106-30
LED/13W/979LM | 3000 | >80 | Black | 12052106D30
LED/13W/979LM | 3000 | >80 | Yellow | 12052114-30
LED/13W/979LM | 3000 | >80 | Yellow | 12052114D30
LED/13W/979LM | 3000 | >80 | Orange | 12052141-30
LED/13W/979LM | 3000 | >80 | Orange | 12052141D30
D = /Dimmable with DALI or SwitchDim | - | - | - | -

Technical specifications

• Shade: painted aluminium.
• Diffuser: opal glass.
• System power (integrated LED option): 13W; Luminaire flux 979 lm; CCT 3000K; CRI >80; SDCM 3; L80 80,000 h.
• E27 socket versions: up to Max 10W (8259 series) and E27 with dimmable LED options (8267 series).
• Integrated LED versions: LED/13W/979LM available with multiple article numbers (see product specification).
• Connection: 2.3 m textile cable with DCL plug (on/off) or terminal block for DALI; terminal block 5x4 mm2.
• Installation: suspended through wire.
• IP rating: IP20.
• Designer: Thomas Bernstrand, 2013.
• Standard colours: White, Black, Red, Yellow, Orange; other colours on request.
