Hanging light fixture LANDSCAPE
LEDlinearcurved

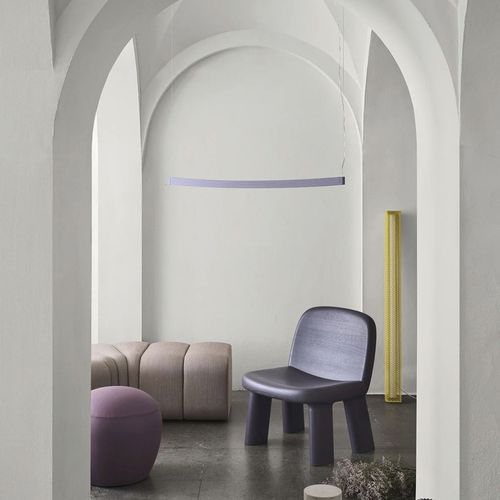

Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved - image - 2
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved - image - 3
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved - image - 4
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved - image - 5
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved - image - 6
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved - image - 7
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved - image - 8
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved - image - 9
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved - image - 10
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved - image - 11
Hanging light fixture - LANDSCAPE - ZERO - LED / linear / curved - image - 12
Add to favorites
Compare this product
Go to the ZERO website for more information

Characteristics

Type
hanging
Light source
LED
Shape
linear, curved
Protection class
IP20
Application
commercial, home
Material
wire
Color
white, black, blue, purple
Style
contemporary
Dimmable
dimmable
Number of lights
single, multiple
Other characteristics
DALI
Height

44 mm
(2 in)

Length

Min.: 1,156 mm
(46 in)

Max.: 1,706 mm
(67 in)

Width

36 mm
(1 in)

Power

50 W

Luminous flux

Min.: 4,140 lm

Max.: 6,685 lm

Color temperature

2,700 K, 3,000 K

Color rendering index (CRI)

80 unit

Description

Overview
The Landscape pendant interprets the silhouette of distant mountain ranges to create a flowing, non-linear profile. It can be used as a standalone signum pendant or linked to form a continuous landscape.

Finish
Painted aluminium. Micro-prismatic diffuser. Light distribution: 60% uplight & 40% downlight. Bracket accessory available to connect several fixtures.

LED info
System power: 50W or 75W. Luminaire luminous flux: 4140 lm – 6685 lm depending on configuration. CCT: 3000K or 4000K. SDCM 3. CRI >80. L90 at 100 000 h. UGR <19.

Installation
Suspended by wire.

Connection
2.5 m cable with terminal block 5x4 mm2.

Classification
IP20.

Design
Note Design Studio 2020.

Standard colours
White, Black, Blue, Purple. Other colours on request.

Product specification (table)
EFFECT | KELVIN | CRI | COLOR | L/MM | ART.
LED | | | | |
50W/4140LM | 3000K | >80 | White | 1156 | 16300101D30
50W/4140LM | 3000K | >80 | Black | 1156 | 16300106D30
50W/4140LM | 3000K | >80 | Blue | 1156 | 16300108D30
50W/4140LM | 3000K | >80 | Purple | 1156 | 16300144D30
50W/4456LM | 4000K | >80 | White | 1156 | 16300101D40
50W/4456LM | 4000K | >80 | Black | 1156 | 16300106D40
50W/4456LM | 4000K | >80 | Blue | 1156 | 16300108D40
50W/4456LM | 4000K | >80 | Purple | 1156 | 16300144D40
75W/6210LM | 3000K | >80 | White | 1706 | 16300301D30
75W/6210LM | 3000K | >80 | Black | 1706 | 16300306D30
75W/6210LM | 3000K | >80 | Blue | 1706 | 16300308D30
75W/6210LM | 3000K | >80 | Purple | 1706 | 16300344D30
75W/6685LM | 4000K | >80 | White | 1706 | 16300301D40
75W/6685LM | 4000K | >80 | Black | 1706 | 16300306D40
75W/6685LM | 4000K | >80 | Blue | 1706 | 16300308D40
75W/6685LM | 4000K | >80 | Purple | 1706 | 16300344D40
D = Dimmable DALI or SwitchDim
ACCESSORIES
Straight connector | | | | | 9163001xx
L-connector | | | | | 9163002xx

Technical specifications
  • Finish: Painted aluminium.
  • Diffuser: Micro-prismatic diffuser.
  • Light distribution: 60% uplight & 40% downlight.
  • Bracket accessory available to connect several fixtures.
  • System power options: 50W and 75W.
  • Luminaire luminous flux range: 4140 lm – 6685 lm depending on configuration.
  • Colour temperatures: 3000K or 4000K.
  • Colour consistency: SDCM 3.
  • CRI: >80.
  • Lifespan: L90 at 100 000 h.
  • UGR <19.
  • Installation: Suspended by wire.
  • Connection: 2.5 m cable with 5x4 mm2 terminal block.
  • Ingress protection: IP20.
  • Design: Note Design Studio 2020.
  • Standard colours available; other colours on request.
  • Available variants and article numbers as listed above.
  • Dimming options: DALI or SwitchDim (dimmable variants indicated with D).
