Pendant lamp HAZE

polyesteracrylicpainted metal

Overview

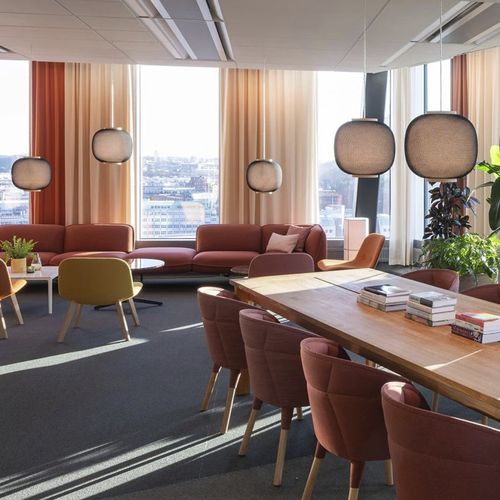

Haze is a pendant luminaire by Zero featuring a painted metal base, a decorative shade cover in 3D woven Camira polyester (available in White, Black or Petrol) and an opal acrylic inner diffuser. Decorative wooden ash rings and textile-covered cable complete the aesthetic. Other fabric colours and cable colours are available on request.

LED information
Available in multiple light source options: dimmable LED PAR38 E27 or built-in LED modules. System power variants: 16W (≈468 lm, 2700K, CRI >80) and 17W (≈656 lm, 3000K, CRI >90). L90 lifetime: 60,000 h. SDCM: 3. Dimmable variants available (DALI or SwitchDim where specified).

Installation and connection
Suspended via textile cable. Standard cable length: 2.5 m with DCL ceiling plug or terminal-block 3x4 mm2; for dimmable versions use 5x4 mm2. Designed for ceiling suspension installations in commercial and contract interiors.

Materials and sustainability
Shade covers are produced in 3D knitted/woven polyester by Camira using flat-bed weft knitting technology for a low-waste process. All polyester yarns are Oeko‑Tex Standard 100 certified and the covers carry the EU Ecolabel for textiles.

Technical specifications

• Product name: Haze
• Brand: Zero
• Base material: Painted metal
• Shade cover: 3D woven polyester (Camira)
• Inner diffuser: Opal acrylic
• Decorative details: Wooden ash rings
• Cable: Textile cable, standard 2.5 m (DCL plug or terminal-block 3x4 mm2; 5x4 mm2 when dimmable)
• Installation: Suspended through cable
• Power / luminous flux variants: 16W / 468 lm (2700K, CRI >80) and 17W / 656 lm (3000K, CRI >90)
• Light sources: Dimmable LED PAR38 E27 or built-in LED module (including dimmable modules)
• Colour temperature options: 2700K and 3000K
• Colour rendering: CRI >80 or CRI >90 depending on variant
• L90 lifetime: 60,000 h
• SDCM: 3
• Ingress protection: IP20
• Designer: Samuel Wilkinson, 2020
• Fabric certifications: Oeko‑Tex Standard 100; EU Ecolabel
• Standard colours: White, Black, Petrol (other colours on request)
• Article codes / variants: see technical table (examples: 16400101-27, 16401101-30, 16401101D30, 16401106-30, 16401145D30)

Designer
Samuel Wilkinson, 2020.

Ordering and variants
Standard fabric: Camira 3D woven polyester. Choose between replaceable dimmable PAR38 E27 light source or integrated LED modules. Specify colour and connection type at order. Dimming options: DALI or SwitchDim where available.
