Factory prefabricated
Access panel system
Full aluminium framework
Hinged access doors
Doors secured by catches and folded on vertical edge
Fine brushed finish
10 years guarantee
|
|
|
|
|
|
The patented system of doors with flush wall closures that can be used to create any type of cupboard, wardrobe or closed space, hide cables or camouflage any other disturbing feature.
The L’Invisible system- Special Closures is made of
• A nucleus structure in extruded aluminium alloy 6060T5 (anticorodal 063), to build -in, that substitutes the casing (soffit-jamb), so that the panel/door may be perfectly aligned with the plaster thus eliminating frames. The structure is very strong and adaptable to any wall depth; it is supplied with perimetral rests that facilitate the positioning in the wall.
• A 19mm MDF wood panel, type “BH”, improved with 7010 (colour white) predisposed for glue / paint.
The L’Invisible system Special Closures product line is based on the concepts of originality and specialization. Made to measure doors and panels can be created to carry out different functions and satisfy different tastes.
The L’Invisible system Special Closures product line can be used to close everything inside and outside the interior space.
|
|
Standard Ceiling | EG
Product Code: EX/EG
Specification
Construction: Recessed frame with To Take Fibre Tile door
Orientation: Ceiling
Fire Rating: Not Rated
Acoustic Rating: Not Rated
|
|
Standard Ceiling | PF FD (up to 600mm)
Product Code: EX/MT/PF/FD (<600)
Specification
Construction: Picture frame with Metal door
Orientation: Ceiling
Fire Rating: 60 minutes
Acoustic Rating: Not Rated
|
|
Standard Ceiling | EG FD
Product Code: EX/EG/FD
Specification
Construction: Recessed frame with To Take Fibre Tile door
Orientation: Ceiling
Fire Rating: 60 minutes
Acoustic Rating: Not Rated
|
|
Standard Ceiling | PB FD
Product Code: EX/PB/SB/FD
Specification
Construction: Beaded frame with Plasterboard door
Orientation: Ceiling
Fire Rating: 60 minutes
Acoustic Rating: Not Rated
|
|
Standard Ceiling | ADS PF
Product Code: EX/ADS/PF
Specification
Construction: ADS Picture frame with Metal door
Orientation: Ceiling
Fire Rating: Not Rated
Acoustic Rating: Not Rated
|
|
Standard Ceiling | ADS PF FD
Product Code: EX/ADS/PF/FD
Specification
Construction: ADS Picture frame with Metal door
Orientation: Ceiling
Fire Rating: 60 minutes
Acoustic Rating: Not Rated
|
|
Standard Ceiling | ADS SB FD
Product Code: EX/ADS/SB/FD
Specification
Construction: ADS Beaded frame with Metal door
Orientation: Ceiling
Fire Rating: 60 minutes
Acoustic Rating: Not Rated
|
|
Standard Ceiling | ADS PB
Product Code: EX/ADS/PB/SB
Specification
Construction: ADS Beaded frame with Plasterboard door
Orientation: Ceiling
Fire Rating: Not Rated
Acoustic Rating: Not Rated
|
|
Standard Ceiling | ADS SB
Product Code: EX/ADS/SB
Specification
Construction: ADS Beaded frame with Metal door
Orientation: Ceiling
Fire Rating: Not Rated
Acoustic Rating: Not Rated
|
|
Standard Ceiling | PB
Product Code: EX/PB/SB
Specification
Construction: Beaded frame with Plasterboard door
Orientation: Ceiling
Fire Rating: Not Rated
Acoustic Rating: Not Rated
|
|
|
|
|
|
Intro

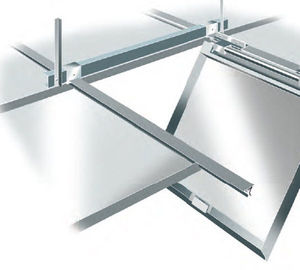

The EX/TC access panel is designed for use in suspended ceilings that consist of a clip-in metal tile and spring tee system.
Construction
Constructed by converting Burgess, Armstrong or other metal pan ceiling tiles into a hinged access unit, and is secured using a budget lock. Other locks are available upon request. The panel door uses the back of the spring tee section as an anchor to support the hinge system. This panel can support more than one tile. For multi-tiled panels it is advisable to contact our technical department.
Fitting
The slotted hinge brackets are designed to clamp loosely onto the top of the spring tee section on the side to be hinged. Correctly align the panel in the ceiling aperture, then tighten the hinge brackets. When closing the access panel use the budget lock key as a handle; swing the door upwards on the hook hinge as far as possible without touching the ceiling, then slide the door backwards toward the hinge side. The panel will then be in the correct position to be locked over the tee section.
|
|
|
Designed to fit into any type of ceiling system, allowing easy access into the cavity/void where regular maintenance to services is required to be carried out.
|
|
|
This panel is designed to fit into the structural membrane of jointless plasterboard wall/ceiling systems. The frame incorporates a beaded frame to allow for tape and jointing on site and comes complete with a recessed door tray to accept a plasterboard infill on site. This type can also be supplied pre-boarded upon request.
|
|
|
Suitable for use in any type of wall/ceiling system within a building that requires some form of containment, e.g. computer rooms, hospital wards, swimming pools etc.
|
|
Standard Ceiling | PF
Product Code: EX/MT/PF
Specification
Construction: Picture frame with Metal door
Orientation: Ceiling
Fire Rating: Not Rated
Acoustic Rating: Not Rated
|
|
|
This panel is designed to fit into the structural membrane of jointless plasterboard ceiling systems. It is supplied with a beaded frame to allow for tape and jointing on site and comes complete with a fully removable flush metal door. It is inserted directly into a pre-cut hole through the face of the ceiling prior to wet finishes being applied. This is a 1 Hour Fire Rated Access Panel which has been tested to B.S.476: Part 22:1987.
|
|
|
Consists of a flush metal door with a beaded frame to allow for tape and skimming on site. Made from wholly non-combustible materials in accordance with BS476 part 4.
|
|
SHEET BASE
It can be used aluminiun and zinc sheet.
It can be supplied by a polyurethane interposed panel.
Realized by several standard measures (available all measures by request).
|
|
FIBERGLASS BASE
Made of polyester resin fiberglass reinforced.
Laterals flanges for roof covering.
Height: 20 cm.
Realized by several standard measures (available all measures by request).
Gel-coat external protection (white/gray color).
|
|
|
Suspended one counter ceilings without special requirements from the building design aspect as for example fire protection. This standard revision flap makes the entrance possible to the ceiling void.
|
|
|
Alutop Rauchschutzrevisionsklappe for suspended counter ceilings with smoke-protection-technical requirements and with requirements of the fire demand of the fire grading period F90 of the counter ceiling lower surface and/or of the tween deck range in dependence for floor structure.
|
|
METAL ROOF ACCESS HATCH with LADDER
Type: RH Ladder - Gorter® - completely assembled, surface mounted
Safety Approval Report available
With FixGrip to safely enter and leave roof hatch
Standard insulated and powdercoated
With counterbalancing system for assisted opening and controlled closing
Hold-open arm that engages automatically, with
one hand release
Cylinder lock, larger dimensions with two point latch with padlock hasps, padlock by others
SAFETY LADDER
Type: Single (EL), Double or Triple (OL), completely assembled
Standard features:
Ladder with two hooks on top to be hooked over a fixed step to safely enter and leave roof hatch.
Hooks can be locked (padlock by others) to prevent ladder from taking away while in use.
Ladder can be stored in the two included wall suspension brackets. One with padlock hasps, padlock by others.
|
|
|
|
|
|
Roof hatches glazed with Lexan® are mainly installed in combination with safety ladders or fixed stairs. We don't recommend combinations of glazed roof hatches with scissor stairs. This combinations will only allow light transmission with extended stairs.
Lexan® is a strong, weathertight multi channel polycarbonate with excellent insulation properties.The Lexan® window can resist a snow load up to 70 kg per sqm.
Glazed roof hatches provide a natural light transmission into the room down below. They make an excellent application in situations where natural light is needed, for instance: access to roof terraces or gardens, in offices, in industrial or governemental buildings.
Safety of Gorter roof hatches glazed with Lexan®
Roof hatch opens and closes using one hand
Roof hatch locks automatically in open position
A diagonal hand rail is provided on the internal cover to safely access and exit the roof hatch
Fall prevention: keep cover closed while on the roof.
Safety approved by Aboma Keboma
Robust and reliable
Durable wind and weather proof finish.
Flexible sealing between roof hatch cover and curb.
Stainless steel hinges.
Cylinderlock with Eurocylinder.
Larger sizes with clinderlock with three point latch.
Thermal insulation.
Curb included.
Strong and light weight aluminium construction.
|
|
METAL ROOF ACCESS HATCH with LADDER
Type: RH Ladder - Gorter® - completely assembled, surface mounted
Safety Approval Report available
With FixGrip to safely enter and leave roof hatch
Standard insulated and powdercoated
With counterbalancing system for assisted opening and controlled closing
Hold-open arm that engages automatically, with
one hand release
Cylinder lock, larger dimensions with two point latch with padlock hasps, padlock by others
SAFETY LADDER
Type: Single (EL), Double or Triple (OL), completely assembled
Standard features:
Ladder with two hooks on top to be hooked over a fixed step to safely enter and leave roof hatch.
Hooks can be locked (padlock by others) to prevent ladder from taking away while in use.
Ladder can be stored in the two included wall suspension brackets. One with padlock hasps, padlock by others.
|
|
|
|
|
|
Roof hatches glazed with Lexan® are mainly installed in combination with safety ladders or fixed stairs. We don't recommend combinations of glazed roof hatches with scissor stairs. This combinations will only allow light transmission with extended stairs.
Lexan® is a strong, weathertight multi channel polycarbonate with excellent insulation properties.The Lexan® window can resist a snow load up to 70 kg per sqm.
Glazed roof hatches provide a natural light transmission into the room down below. They make an excellent application in situations where natural light is needed, for instance: access to roof terraces or gardens, in offices, in industrial or governemental buildings.
Safety of Gorter roof hatches glazed with Lexan®
Roof hatch opens and closes using one hand
Roof hatch locks automatically in open position
A diagonal hand rail is provided on the internal cover to safely access and exit the roof hatch
Fall prevention: keep cover closed while on the roof.
Safety approved by Aboma Keboma
Robust and reliable
Durable wind and weather proof finish.
Flexible sealing between roof hatch cover and curb.
Stainless steel hinges.
Cylinderlock with Eurocylinder.
Larger sizes with clinderlock with three point latch.
Thermal insulation.
Curb included.
Strong and light weight aluminium construction.
|
|
|
|
