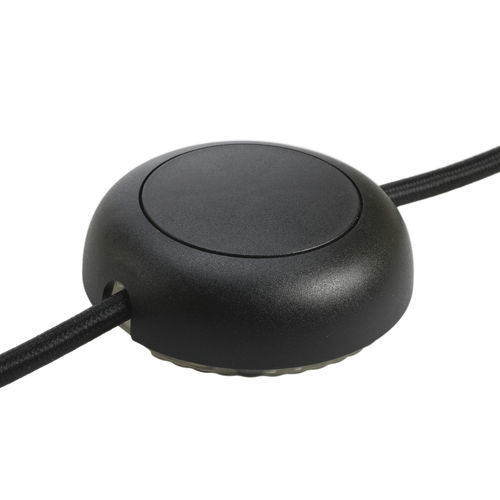

Portable dimmer T24.09

plug-in

Product information
LED power: 3 – 50 W. Other loads: 5 – 110 W/VA or up to 150 W/VA (depending on specification). Nominal voltage: 230 V ~ (+/- 10%) / 50 Hz and 110 V ~ (+/- 10%) / 60 Hz. Universal cord dimmer for reliable dimming regardless of manufacturer and LED type. Suitable for dimmable filament LEDs, LED drivers, LED lamps, incandescent and high-voltage halogen lamps. Phase cut: leading- and trailing-edge, manually switchable. SILENT TECHNOLOGY – completely silent operation. Optimization functions for flicker-free dimming at minimum and maximum levels. Comfortable full-surface push-dim button. Electronic short-circuit/overload protection and overtemperature shutdown. Soft-start and Memory function Plus (retains last setting even after complete power loss, e.g., switched socket). Subtle orientation light for easy locating in the dark. Protective-earth connection possible. EHMANN advantage – 100% quality control, 5-year warranty, German manufacturer. EHMANN quality – high-quality workmanship and reliable operation.

Features (product table)

• Color: Black
• Housing: Plastic
• Phase control: Universal
• Control type: Push-button (push-dim)

Safety and warnings

• The cord dimmer may only be operated in dry and enclosed rooms.
• The cord dimmer must not be operated covered; risk of heat build-up that can cause damage or fire.
• Avoid operation under adverse conditions: relative humidity above 80%, moisture, ambient temperatures above 50°C, solvents, flammable gases, dust or vapors.
• Never pour liquids over the cord dimmer; risk of fire or fatal electric shock. If this occurs, unplug immediately and contact a qualified technician.
• Failure to follow the operating instructions may cause device damage, fire or other hazards. If the cord dimmer shows external damage from transport or improper handling, do not operate it and take it out of service immediately. The same applies to any intervention in the device; opening the device voids the warranty.
• Even if the cord dimmer no longer functions, it must be taken out of service immediately.
• Opening the device may expose live parts (risk of electric shock). The device may only be opened by a qualified electrician after ensuring it is disconnected from the mains.

Technical specifications

• LED power: 3 – 50 W
• Other loads: 5 – 110 W/VA or up to 150 W/VA (depending on specification)
• Nominal voltage: 230 V ~ (+/- 10%) / 50 Hz and 110 V ~ (+/- 10%) / 60 Hz
• Phase control: Universal (leading- and trailing-edge, manually switchable)
• Suitable for: dimmable filament LEDs, LED drivers, LED lamps, incandescent and HV halogen lamps
• Control type: Push-button (push-dim, full-surface actuation)
• SILENT TECHNOLOGY: silent operation
• Functions: flicker optimization, soft-start, Memory function Plus
• Protection: electronic short-circuit/overload protection, overtemperature shutdown
• Orientation light: subtle integrated
• Protective-earth connection: possible
• Color: Black
• Housing material: Plastic
• Warranty: 5 years (manufacturer specification)
