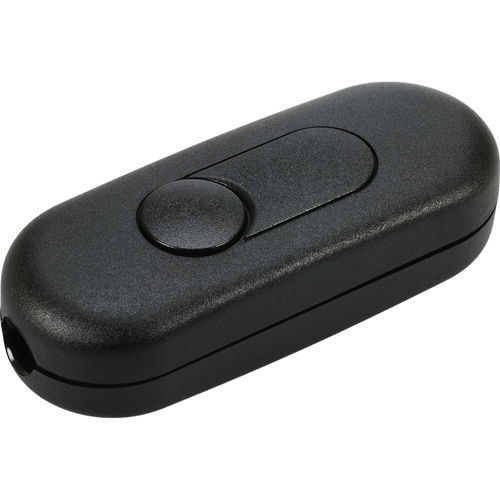

Light dimmer switch T29.09

push-buttonelectronicblack

Product description
Electronic LED universal cord dimmer
230 V ~ (+/- 10%) / 50 Hz
110 V ~ (+/- 10%) / 60 Hz
Power: LED 3-30 W, 5-100 W/VA
Power: LED 3-30 W, 5-80 W/VA
Universal: leading-edge and trailing-edge phase-cut, manually switchable
Compatible with dimmable filament LEDs, LED drivers, LED, HV-halogen and incandescent lamps
Optimization option for flicker-free dimming, extremely compact design
Microprocessor-controlled, silent, soft-start, Memory Function Plus, IP20
Electronic short-circuit/overload protection and overtemperature protection
On/Off/Dim via push switch, color: black, single unit packaging

Safety instructions

• The cord dimmer must only be operated in dry, enclosed indoor environments.
• Do not operate the cord dimmer while covered (risk of heat build-up).
• Avoid operation under adverse environmental conditions (relative humidity above 80%, wet conditions, ambient temperatures above 50°C, solvents, combustible gases, dust, vapors).
• Do not pour liquids over the device (risk of fire or lethal electric shock). If hazardous conditions occur, disconnect from the mains immediately and consult a qualified electrician.
• Do not operate the device if it is externally damaged or has been tampered with; opening the device voids the warranty.
• Opening the device may expose live parts; only qualified personnel may open it after disconnecting it from the mains.

Features

• Color: Black
• LED power: 3 - 35 W LED
• Power: 5 - 100 W/VA

Technical specifications

• Voltage: 230 V ~ (+/- 10%) / 50 Hz; 110 V ~ (+/- 10%) / 60 Hz
• LED power (description): 3 - 30 W
• LED power (features/table): 3 - 35 W
• Load range: 5 - 100 W/VA
• Phase cut: leading-edge and trailing-edge, manually switchable
• Compatibility: dimmable filament LEDs, LED drivers, LED, HV-halogen and incandescent lamps
• Microprocessor-controlled, silent, soft-start, Memory Function Plus
• Protection functions: electronic short-circuit/overload protection and overtemperature protection
• Protection rating: IP20
• Color: Black
• Packaging: single unit packaging
