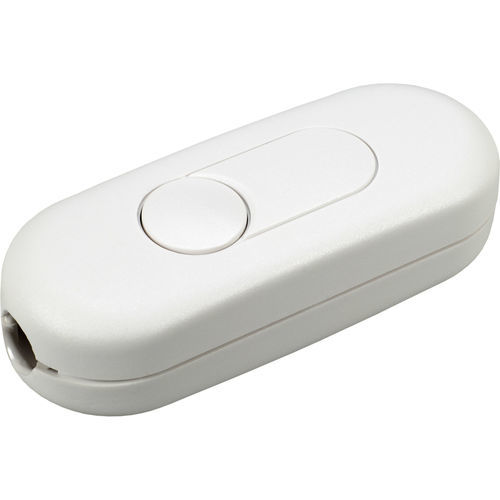

Light dimmer switch T29.09

push-buttonelectronicLED

Product description
LED universal in-line dimmer for reliable dimming independent of LED manufacturer and device type.

• Compatible with dimmable filament LEDs, LED drivers, LED lamps, incandescent and halogen lamps
• Leading-edge and trailing-edge operation, manually switchable
• International use: suitable for 110/230 V~, 50/60 Hz networks
• SILENT TECHNOLOGY – absolutely noiseless operation
• Adjustment options for flicker-free dimming at minimum and maximum settings
• Electronic short-circuit/overload protection and overtemperature cut-out
• Soft-start and memory function (retains setting even after complete power loss)
• Extremely compact design
• EHMANN advantage – 100% quality control, 5-year warranty
• EHMANN service – LED lamp recommendation via printed QR code

Technical specifications

• LED power: 3 – 30 W
• Load power: 5 – 100 W/VA; alternatively 5 – 80 W/VA
• Rated voltage: 110 / 230 V~
• Frequency: 50 / 60 Hz
• Operating principle: selectable leading-edge & trailing-edge
• Control: On/Off/Dim via push button
• Overtemperature protection: thermal cut-out
• Overload/short-circuit protection: electronic
• Maximum conductor Ø: 8 mm
• Shutdown: electronic
• Switching cycles: > 25,000
• Connection: screw terminals 0.5 - 1.5 mm² (flexible)
• Operating mode: S1
• Protection class: II
• Ingress protection: IP20
• Pollution degree: 1
