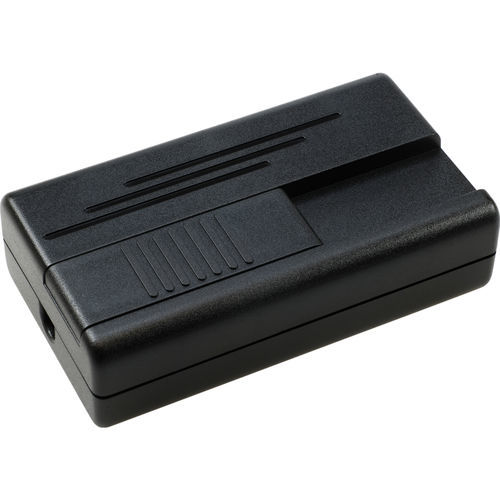

Light dimmer switch T25.10

slidingelectronicblack

Product description
Cord dimmer with phase-cut control for continuous dimming of dimmable incandescent and halogen lamps (HV/NV) with magnetic transformers. Operated by a sliding control, suitable for both hand and foot operation. Compact black housing, protection class IP20.

Safety and warnings

• For indoor use only in dry, enclosed spaces.
• Do not cover the dimmer; risk of heat build-up and fire.
• Avoid operation in high humidity (>80% RH), wet conditions, ambient temperatures above 50°C, solvents, flammable gases, dust or vapors.
• Do not pour liquids over the dimmer; if contamination occurs, disconnect the mains immediately.
• If the device is visibly damaged or has been mishandled, do not operate it; repairs or opening must be performed only by qualified electricians.
• If the dimmer stops functioning, take it out of service immediately.

Technical data
Color: Black
Power: 20-500 W/VA
Phase control: Phase-cut (leading-edge)

Characteristics / technical specifications

• Brand: EHMANN
• Model / Type: T25.10
• Product number (SKU): 2521x0000
• EAN / GTIN: 4012096252108
• Voltage: 230 V
• Frequency: 50 Hz
• Power: 20-500 W/VA
• Phase control: Phase-cut
• Operation: Sliding control (hand and foot operation)
• Protection rating: IP20
• Protection: Short-circuit / overload protection via fine fuse
• Color: Black
• Packaging: Single unit
• Application: For dimmable incandescent, HV and NV halogen lamps with magnetic transformer
