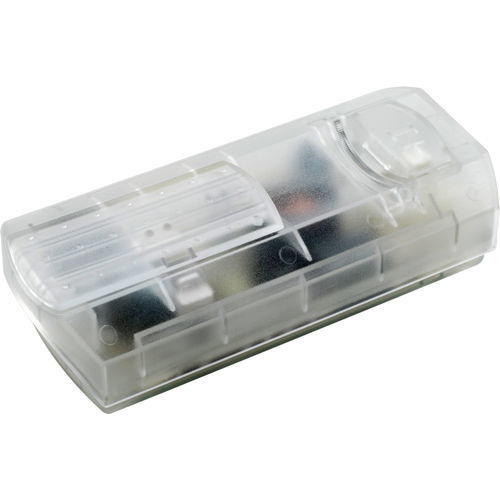

Light dimmer switch T26.07.50

sliding buttontransparent

Product information
3 - 150 W LED (text)
3 - 160 W LED (table)
20 - 500 W/VA rated load
230V~, 50 Hz rated voltage

• Suitable for dimmable LED lamps, incandescent, high-voltage and low-voltage halogen lamps with magnetic transformer
• Low-noise operation
• Adjustment option to optimise flicker-free dimming of LED lamps at minimum levels
• Short-circuit / overload protection via fine fuse
• No standby power consumption
• Protective earth (ground) connection possible
• Can be used as intermediate or end device thanks to different connection options

Safety and warnings

• Operate the cord dimmer only in dry, enclosed indoor locations.
• Do not cover the dimmer during operation. Covering may cause heat buildup, damage or fire.
• Avoid operation under adverse environmental conditions (e.g. relative humidity over 80%, wetness, ambient temperatures above 50°C, solvents, flammable gases, dust, vapours).
• Never pour liquids over the cord dimmer. Risk of fire or lethal electric shock. If liquid enters the device, disconnect the plug from the mains immediately.
• Failure to follow the instructions may result in damage, fire or other hazards. If the dimmer shows external damage from transport or improper handling, do not operate it and take it out of service immediately. The same applies after any intervention in the device. Opening the device or other tampering voids the warranty.
• Opening the device may expose live parts (risk of electric shock). The device may only be opened by a qualified electrician after it has been disconnected from the mains.

EHMANN advantage / Service / Quality

• 100 % quality control
• 5 years warranty
• German manufacturer
• High-quality workmanship and reliable function

Technical specifications

• Colour: Transparent
• LED power (text): 3 - 150 W
• LED power (table): 3 - 160 W LED
• Load power: 20 - 500 W/VA
• Rated voltage: 230V~, 50 Hz
• Phase control: Leading-edge (phase-cut)
• Weight: 0.198 kg
• Height: 59 mm
• Width: 130 mm
• Depth: 35 mm
• Contents: 1 piece
• EAN: 4012096005148
• Product number / SKU: 2600x0750
