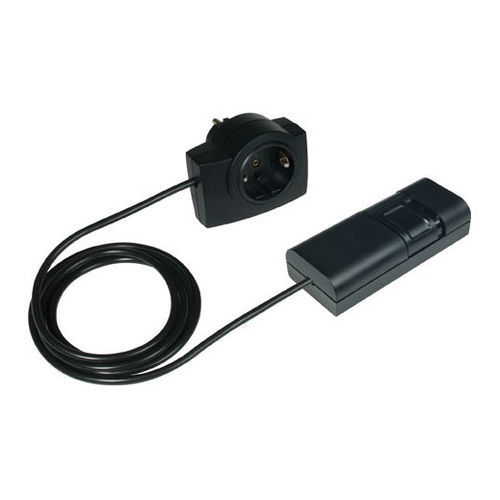

Light dimmer switch T21.07.09

rotaryelectronicplastic

Product information
3 - 35 W LED power
7 - 110 W/VA power
230V~, 50 Hz rated voltage

Functions and features

• Suitable for dimmable LED lamps, incandescent, HV and LV halogen lamps with magnetic transformer
• Adjustment option for flicker-free dimming of LED lamps in the minimum range
• No standby consumption due to true on/off switch
• Short-circuit/overload protection via micro fuse
• Approx. 1.8 m supply cable with permanently attached protective-contact inline plug
• Protective-contact inline plug with extended touch protection using a safety shutter
• Complete unit – plug & play

Additional information
EHMANN advantage - 100% quality control, 5 years warranty, German manufacturer
EHMANN service - LED lamp recommendation available anytime via printed QR code
EHMANN quality - high-quality workmanship and reliable function

Characteristics
Color: Black
Housing: Plastic
LED power: 3 - 35 W LED
Phase control: Leading-edge (phase-cut)
Control type: Rotary knob

Characteristics / Technical specifications

• Product number (SKU): 2120x0709
• EAN (GTIN-13): 4012096003526
• Weight: approx. 0.37 kg
• Dimensions (H x W x D): 45 mm x 105 mm x 25 mm
• Supply cable: approx. 1.8 m
• Voltage: 230 V~, 50 Hz
• LED power: 3 - 35 W
• Power (incandescent/halogen): 7 - 110 W/VA
• Protection: Short-circuit/overload protection via micro fuse
• Protective-contact inline plug with extended touch protection (safety shutter)
• No standby consumption due to true on/off switch
• Scope of delivery: 1 piece
• Availability: Immediately available, delivery time: 2-5 days
• Warranty: 5 years
