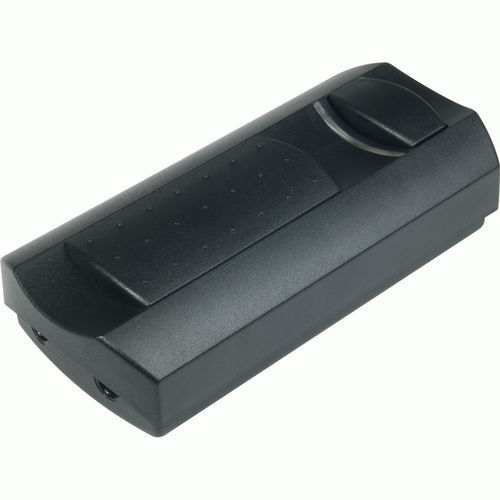

Light dimmer switch T26.07.50

sliding buttonblack

Product information "LED cord dimmer T26.07.50 black"
3 - 150 W LED power. 20 - 500 W/VA general power. 230V~, 50 Hz rated voltage.

Features

• Suitable for dimmable LED lamps, incandescent, HV and LV halogen lamps with magnetic transformer
• Low-noise operation
• Adjustment option for flicker-free dimming of LED lamps in the lower range
• Short-circuit/overload protection via fine fuse
• No standby consumption
• Protective earth connection possible
• Can be used as intermediate or end device thanks to different connection options

Additional product features
EHMANN advantage - 100% quality control, 5 years warranty, German manufacturer.
EHMANN quality - high-grade workmanship and reliable function.

Safety and warnings

• The cord dimmer is for indoor use only in dry, enclosed spaces.
• Do not operate the dimmer covered (risk of heat accumulation, damage or fire).
• Avoid unfavorable environmental conditions (relative humidity >80%, moisture, ambient temperatures >50°C, solvents, flammable gases, dust, vapours).
• Never pour liquids over the dimmer (risk of fire or fatal electric shock). In such cases, unplug and contact qualified personnel.
• Do not operate the device if externally damaged by transport or improper handling. The same applies after tampering; opening the device voids the warranty.
• Opening the device may expose live parts (to be opened only by a qualified electrician after disconnection from the mains).

Characteristics / technical specifications

• Model: T26.07.50
• Product number / SKU: 2620x0750
• EAN (GTIN-13): 4012096005100
• Price (displayed): €64.26
• Price unit: 1 piece
• Rated voltage: 230V~, 50 Hz
• LED power range: 3 - 150 W
• Power range (general): 20 - 500 W/VA
• Weight: 0.212 kg
• Dimensions (H x W x D): 59 mm x 130 mm x 35 mm
• Protection functions: short-circuit/overload protection via fine fuse
• Special functions: optimization for flicker-free dimming at low levels, low-noise operation, no standby consumption, protective earth connection possible, usable as intermediate or end device
• Warranty: 5 years
• Availability: Immediately available, delivery time: 2-5 days
• Manufacturer / Brand: EHMANN (German manufacturer)
