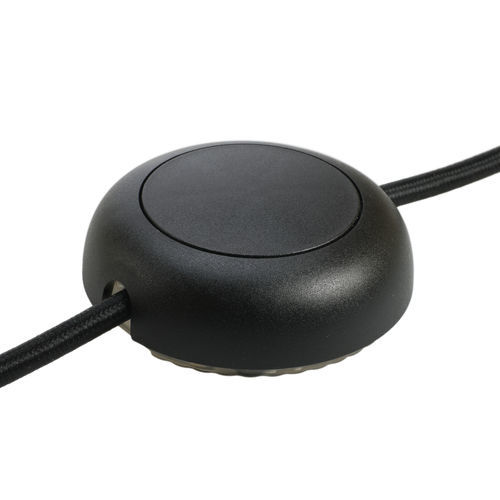

Light dimmer switch T24.08

push-buttonelectronicplastic

Product information LED cord dimmer T24.08 black
LED power: 3 - 55 W
Conventional load: 5 - 150 W/VA
Rated voltage: 230 V~, 50 Hz

• LED multi-dimmer for reliable dimming independent of LED manufacturer and type
• Suitable for dimmable filament LEDs, LED drivers, LED lamps, incandescent and HV halogen lamps
• SILENT TECHNOLOGY – absolutely noiseless operation
• Adjustment options for flicker-free dimming of LED lamps at minimum and maximum range
• Comfortable full-surface push-button operation (push-dim)
• Electronic short-circuit/overload protection and overtemperature protection
• Soft-start & Memory-Function Plus (retains setting even after complete power loss, e.g. switched outlet)
• Discrete orientation light for easy locating in the dark
• Protective earth/ground connection possible

EHMANN Advantage
100% quality control, 5-year warranty, German manufacturer

EHMANN Service
LED lamp recommendation accessible at any time via printed QR code

Characteristics / Technical specifications

• Color: Black
• Housing: Plastic
• Phase control: Leading-edge (phase-cut)
• Control type: Push-button
• Rated voltage: 230 V~, 50 Hz
• LED power range: 3 - 55 W
• Power range (conventional): 5 - 150 W/VA
• Safety functions: Electronic short-circuit/overload protection, overtemperature protection
• Functions: Silent Technology (noiseless), Push-Dim (full-surface push-button), Soft-Start, Memory-Function Plus
• Orientation light: Yes (discrete orientation light)
• Protective earth connection: Possible
• Weight: 0.12 kg
• Dimensions (H x W x D): 75 mm x 75 mm x 27 mm
• EAN (GTIN-13): 4012096006015
• Product number / SKU: 2420x0800
• Warranty: 5 years
