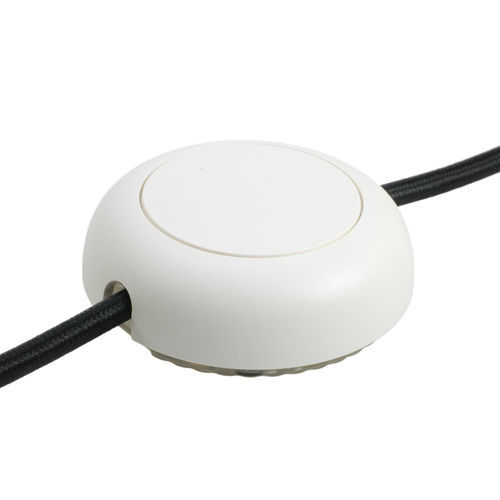

Light dimmer switch T24.08

push-buttonpullelectronic

Product information
The EHMANN T24.08 is a cord-operated LED multidimmer designed for reliable dimming across a wide range of lamp types. It supports LED modules, LED drivers and conventional lamps while offering silent operation and protective functions suitable for professional installations.

Features

• Universal LED multidimmer compatible with various manufacturers and LED types
• Suitable for dimmable filament LEDs, LED drivers, LED lamps, incandescent and high-voltage halogen lamps
• SILENT TECHNOLOGY — completely silent operation
• Adjustments to ensure flicker-free dimming at minimum and maximum levels
• Full-surface push-dim control for intuitive operation
• Electronic short-circuit/overload protection and overtemperature safeguard
• Soft-start and Memory Function Plus (retains setting after complete power loss, e.g. switched outlet)
• Subtle locator light for easier finding in the dark
• Protective-earth connection possible

Additional information
EHMANN advantage - 100% quality control, 5-year warranty, German manufacturer
EHMANN service - LED lamp recommendations accessible via printed QR code
EHMANN quality - precise workmanship and dependable function

Technical data (table)
Color: White
Phase control: Phase-cut (leading-edge)
Rated voltage: 230V~, 50 Hz

Characteristics / Specifications

• Model: T24.08
• Brand: EHMANN
• LED power range: 3 - 55 W
• General power range: 5 - 150 W/VA
• Rated voltage: 230V~, 50 Hz
• Color: White
• Phase control: Phase-cut (leading-edge)
• Protection functions: Short-circuit/overload protection, overtemperature safeguard
• Functions: Silent Technology, Soft-Start, Memory Function Plus, locator light, push-dim
• Package contents: 1 unit
• Weight: 0.123 kg
• Dimensions (H x W x D): 75 mm x 75 mm x 27 mm
• Warranty: 5 years
• Product number / SKU: 2460x0800
