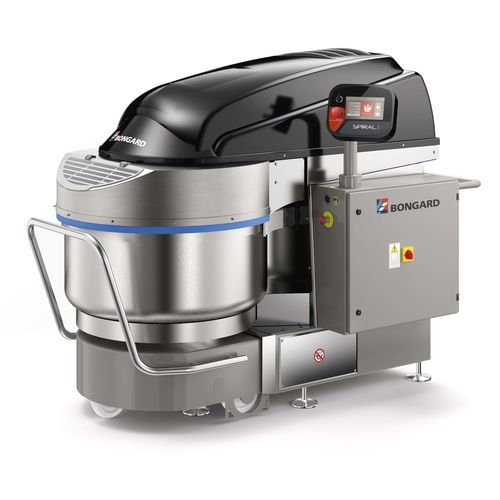

Spiral kneader EVO Afor pastry shopspizza doughwith spiral hook
Add to favorites
Compare this product
Characteristics
- Type
- spiral
- Applications
- for pastry shops, pizza dough
- Default tool
- with spiral hook
- Bowl characteristics
- rotating bowl
- Other characteristics
- commercial
- Electric powered
- 400V three-phase
- Installation
- bench-top
- Capacity
Max.: 360 l
(95 gal)Min.: 250 l
(66 gal)- Capacity (kg)
Max.: 253 kg
(558 lb)Min.: 8 kg
(18 lb)- Flour capacity
Max.: 158 kg
(348 lb)Min.: 5 kg
(11 lb)- Power
10 kW, 13.6 kW
(13.6 hp, 18.49 hp)- Machine width
990 mm, 1,135 mm
(39 in, 45 in)- Machine depth
2,239 mm
(88 in)- Machine height
2,035 mm
(80 in)- Machine weight
1,210 kg, 1,265 kg
(2,668 lb, 2,789 lb)
Description
Overview
The SPIRAL EVO A removable-bowl spiral mixer combines powerful, controlled kneading with gentle dough treatment and operational flexibility for large-scale batch production in commercial bakeries and industrial bakeries.
Characteristics
Ergonomics and user comfort
A comfortable way to work
Increased productivity
Robustness and durability
Smart Touch Control panel
Characteristics / technical specifications
The SPIRAL EVO A removable-bowl spiral mixer combines powerful, controlled kneading with gentle dough treatment and operational flexibility for large-scale batch production in commercial bakeries and industrial bakeries.
Characteristics
- Designed to handle large volumes while maintaining consistent dough structure and hydration.
Ergonomics and user comfort
- Flat-bottomed rotating bowl for improved flour incorporation during mixing.
- Larger working surface for optimal dough distribution and even spiral movement.
- Minimal heating during mixing to preserve dough quality across batch sizes.
- Variable bowl speed and reverse bowl rotation for precise kneading control and dough consistency.
A comfortable way to work
- Hydraulic mechanism facilitates bowl insertion and removal for safe, fast handling.
- Side-mounted, accessible touch control panel for intuitive operation.
- Stainless steel anti-splash lid to reduce dust and contamination.
- Raised frame on six feet to allow easy floor cleaning and maintenance access.
Increased productivity
- Capable of consecutive mixing cycles using multiple bowls to maximize throughput.
- Removable mixing bowl enables easy loading and is compatible with Bongard hydraulic lifters: Tilti Evo and BDC.
- When integrated with the Venus Line automatic divider and tray-loader, it streamlines bulk proofing and downstream processes.
Robustness and durability
- Reinforced steel frame with epoxy coating for industrial environments.
- Stainless steel bowl, spiral and dividing blade for hygiene and longevity.
- Stainless steel front guard on head and body for added protection.
Smart Touch Control panel
- Recipe Mode: guides operators step-by-step through mixing programmes.
- Optional Infrared Probe: monitors dough temperature and triggers alerts or automatic stop at set points.
- Manager Mode: configures user profiles and access levels.
Characteristics / technical specifications
- Model: SPIRAL EVO A.
- Removable flat-bottomed rotating bowl for improved flour incorporation and uniform spiral action.
- Variable bowl speed and reverse rotation for accurate kneading and consistent results.
- Hydraulic bowl insertion/removal mechanism for safe handling.
- Side-mounted touch control panel with Recipe Mode and Manager Mode; optional infrared temperature probe.
- Stainless steel anti-splash lid; stainless steel bowl, spiral and dividing blade; stainless steel front guard.
- Reinforced steel frame with epoxy coating; raised on six feet for cleaning access.
- Compatible with Bongard hydraulic lifters (Tilti Evo, BDC) and combinable with the Venus Line automatic divider and tray-loading system to optimise bulk proofing.
Catalogs
bongard-rhea-dc-en
12 Pages
