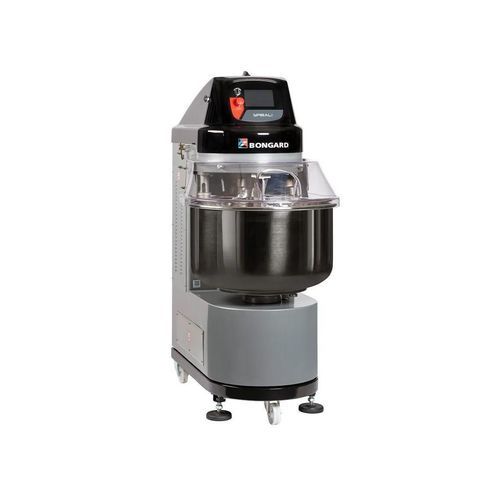

Spiral kneader EVO SMART

for bakerieswith spiral hookrotating bowl

Characteristics
New Spiral Evo Smart: Precise dosing and recipe control The Spiral Evo Smart mixer doses water with precision, controls temperature, and stores recipes to ensure consistent mixing. It reduces manual handling and errors while simplifying daily production.

Mixing capacities

• Water addition capacity: 1.3–75 L
• Dough quantity: 3.5–200 kg
• Flour quantity: 2.2–125 kg
• Speed settings: 2

Connection

• 2 water inlets (cold mains and hot mains)
• 1 outlet (optional external water point: additional outlet required) — mixer supplied with connection hoses
• Power supply: 400V three-phase + ground

Recognition Spiral Evo Smart has been recognised for low flour emissions following testing at LEMPA.

Daily comfort of use Automatically calculates water temperature using real-time base, flour and ambient temperature data. Automatic ingredient calculation reduces handling and errors.

Guaranteed consistency Integrated water dispenser measures to the millilitre. Ambient temperature sensor: 1°C precision. Infrared bowl probe: 1°C precision. Integrated scale: 100 g precision. Automatic cycle adjustment for consistent results.

Secured Recipes Stores up to 99 recipes with automatic control of kneading phases, ingredient management and an alert validation system to ensure correct execution of each recipe.

Easy cleaning Reversible bowl rotation aids release of deposits. Removable bowl scraper and removable drain plug integrated into the bowl. Magnetic gutter for draining cleaning water.

Enhanced ergonomics Elevated bowl for easy access and improved posture. Rounded edges for easier draining and cleaning. Transparent lid for visibility. Optional external water inlet for supplying other equipment.

Continued performance Flat-bottomed rotating bowl ensures excellent flour incorporation. Wider surface provides optimal dough distribution and consistent spiral operation. Minimal heating for consistent quality across batch sizes. Two rotation speeds and reversible bowl rotation for efficient mixing and aeration. Optional bowl scraper ensures uniform mixture.

Documentation Downloadable product documentation (technical file and user manual) is available.

Technical specifications

• Model: Spiral Evo Smart
• Manufacturer: Bongard
• Water addition capacity: 1.3–75 L
• Dough quantity range: 3.5–200 kg
• Flour quantity range: 2.2–125 kg
• Speed settings: 2 (two rotation speeds)
• Water inlets: 2 (cold mains and hot mains)
• Optional external water outlet (additional outlet to be provided)
• Power supply: 400V three-phase + ground
• Integrated water dispenser: measures to the nearest millilitre
• Ambient temperature sensor: 1°C precision
• Infrared bowl temperature probe: 1°C precision
• Integrated scale: 100 g precision
• Recipe capacity: up to 99 recipes
• Bowl: flat-bottomed rotating bowl, reversible rotation
• Cleaning features: removable bowl scraper, removable drain plug, magnetic gutter
• Ergonomics: elevated bowl, transparent lid, rounded edges
• Emissions: recognised as having low flour emissions following testing
