Panel cladding JI 70-450

steelsheet metalribbed

Description

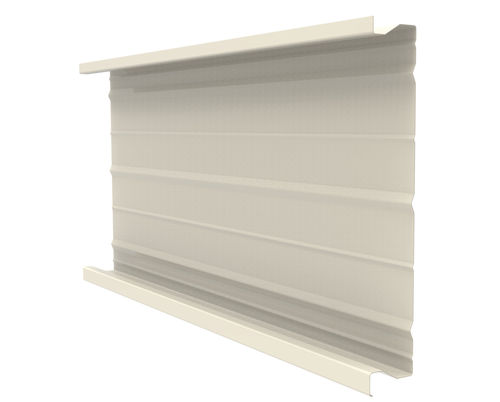

The JI 70-450 is a steel tray designed for double-skin cladding systems. Mounted horizontally, it provides structural support for the outer skin while enabling efficient integration of thermal insulation within the tray. It is compatible with spacers to optimize thermal performance and is available in various lengths and configurations on request. The JI 70-450 is suitable for a range of construction projects requiring reliable long-term performance and adaptability.

Dimensions
Length: Min. 1000.0 mm / Max. 13600.0 mm
Width: Max. 450.0 mm

Thickness and weight

• 0.75 mm : 8.5 kg/m²
• 0.88 mm : 9.98 kg/m²
• 1.00 mm : 11.34 kg/m²

Coatings / Options

• Interiorcoating 912 (15 µ) — base coating for interior construction applications
• Galva

Material
Steel S320 GD

Reference standards
Galvanized steel: EN 10346:2015 - tolerances according to EN 10143:2006
Coil coating: EN 10169:2022
Geometry tolerances: EN 508-1:2021
Calculations: EN 1993-1-3:2006

Features / technical specifications

• Commercial model: JI 70-450
• Use: Trays for double-skin cladding, horizontal installation
• Function: Structural support for outer skin and integration of thermal insulation
• Compatibility: Compatible with spacers to optimize thermal performance
• Available length: 1,000.0 mm to 13,600.0 mm (on request)
• Maximum width: 450.0 mm
• Thicknesses and masses: 0.75 mm = 8.5 kg/m²; 0.88 mm = 9.98 kg/m²; 1.00 mm = 11.34 kg/m²
• Material: Steel S320 GD
• Available coatings: Interiorcoating 912 (15 µ), Galva
• Standards: EN 10346:2015, EN 10143:2006, EN 10169:2022, EN 508-1:2021, EN 1993-1-3:2006
