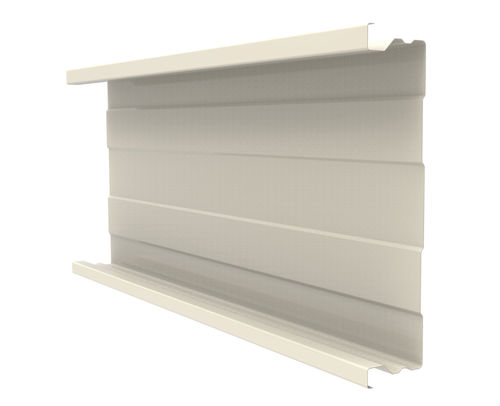

Panel cladding JI 90-400

steelsheet metalribbed

Description
The JI 90-400 is a steel panel designed as the inner skin for double-skin roofs and cladding. It provides structural stability and accommodates thermal insulation within the panel. Fastenings are recessed in recesses, and the panel supports the outer skin via fixings through the lips, passing through the insulation. It is compatible with thermal spacers to optimize thermal performance and integrates into a complete Joris Ide system of solutions.

Dimensions
Length: Min. 1000.0 mm / Max. 13600.0 mm
Width: Max. 400.0 mm

Thickness and mass

• 0.75 mm: 9.57 kg/m²
• 0.88 mm: 11.23 kg/m²
• 1.00 mm: 12.76 kg/m²

Material
Steel S320 GD

Coating options

• Interieurcoating 912 (15 µ) — Base coating for interior construction applications only
• Galvanized

Standards and recommendations
Galvanized steel: NF EN 10346:2015 - tolerances according to NF EN 10143:2006 - NF P34-310:2017
Coil coating: NF EN 10169:2022 - NF P34-301:2017
Tolerance: RAGE professional recommendations for cladding, July 2014
Calculations: Tests according to NF P 34-503-1:2024 interpreted per RAGE professional recommendations 2014 annexes D, E and N for wind Eurocode (NF EN 1991-1-4+NA:2012) and annexes K, E and N for wind NV65 rules modified 2009

Features / technical specifications

• Commercial name: JI 90-400
• Use: Steel panel for inner skin of double-skin roofs and cladding
• Available length: Min. 1000.0 mm / Max. 13600.0 mm
• Maximum width: 400.0 mm
• Available thicknesses and surface mass: 0.75 mm = 9.57 kg/m²; 0.88 mm = 11.23 kg/m²; 1.00 mm = 12.76 kg/m²
• Material: Steel S320 GD
• Coatings: Interieurcoating 912 (15 µ); Galvanized
• Compatibility: Fastenings recessed in recesses; fixings through the insulation in the lips; compatible with thermal spacers
• Reference standards: NF EN 10346:2015, NF EN 10169:2022, NF P34-310:2017, NF P34-301:2017 and RAGE recommendations (July 2014)
