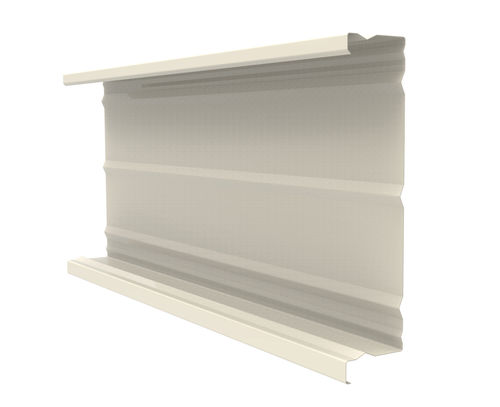

Panel cladding JI 92-400

steelsheet steelribbed

Description The JI 92-400 is a steel tray designed for double-skin cladding, providing structural stability and secure fixing of the outer skin. Its horizontal installation enables effective integration of thermal insulation, optimizing building performance. Compatible with spacers to offer installation flexibility according to project requirements. Available in multiple lengths and finishes, the JI 92-400 is suitable for industrial, commercial and architectural applications.

Dimensions
Length: Min. 1000.0 mm / Max. 13600.0 mm
Width: Max. 400.0 mm

Thickness and weight
0.75 mm: 9.57 kg/m²
0.88 mm: 11.23 kg/m²
1.00 mm: 12.76 kg/m²

Material
Steel sheet S 320 GD. Steel tray in S 350 GD available on request (characteristic values provided in test report appendices).

Coatings

• Interieurcoating 912 (15 µ) — base coating for interior building applications only.
• Galva — galvanization (referenced color: Galva / #A5A5A5).

Reference standards

• Galvanized steel: NF EN 10346:2015 - tolerances according to NF EN 10143:2006 - NF P34-310:2017
• Coil coating: NF EN 10169:2022 - NF P34-301:2017
• Tolerances: RAGE professional recommendations for cladding, July 2014
• Calculations: Tests according to NF P 34-503-1:2024 interpreted according to RAGE professional recommendations 2014 (appendices for wind Eurocode NF EN 1991-1-4+NA:2012 and appendices for wind NV65 rules modified 2009)

Applications

• Double-skin cladding for industrial, commercial and architectural buildings
• Horizontal installation for integration of thermal insulation

Technical characteristics / Specifications

• Model: JI 92-400
• Dimensions: length 1000.0 mm — 13600.0 mm; width max. 400.0 mm
• Available thicknesses: 0.75 mm; 0.88 mm; 1.00 mm
• Weight: 9.57 kg/m² (0.75 mm); 11.23 kg/m² (0.88 mm); 12.76 kg/m² (1.00 mm)
• Material: steel sheet S 320 GD (option S 350 GD on request)
• Available coatings: Interieurcoating 912 (15 µ), Galva
• Compatibility: spacers
• Application areas: industrial, commercial, architectural
