Panel cladding JI 92-500

sheet metalribbedstanding seam

Overview

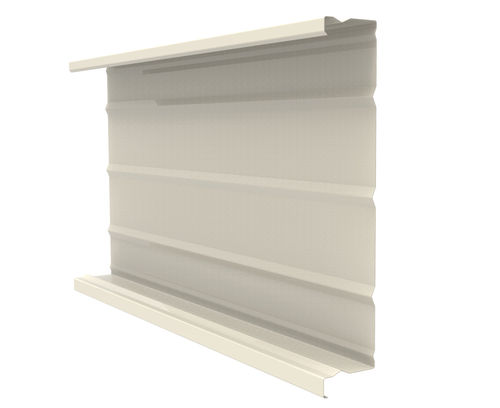

The JI 92-500 is a steel tray designed for double-skin cladding applications. Installed horizontally, it provides structural support for the outer skin while enabling efficient integration of thermal insulation within the tray. It is compatible with spacers to optimize thermal performance and is available in various configurations on request, including an option with S 350 GD steel.

Key features

• Steel tray for double-skin cladding, horizontal installation.
• Supports the outer skin and allows insulation integration inside the tray.
• Compatible with spacers to enhance thermal performance.
• Available in multiple configurations on request; S 350 GD steel option available on request.
• Engineered for long-term performance and adaptability across construction projects.

Dimensions
Length: Min. 1000.0 mm / Max. 13600.0 mm
Width: Max. 500.0 mm

Thickness and weight
0.75 mm: 8.83 kg/m²
0.88 mm: 10.36 kg/m²
1.00 mm: 11.78 kg/m²

Materials and coatings

• Material: steel sheet S 320 GD (S 350 GD option available on request; characteristic values in test report annexes).
• Available coatings: interior coating (Interieurcoating 912 - 15 µ) for indoor use only; galvanized finish.

Applicable standards

• Galvanized steel: NF EN 10346:2015 - tolerances according to NF EN 10143:2006 - NF P34-310:2017.
• Coil coatings: NF EN 10169:2022 - NF P34-301:2017.
• Tolerances and recommendations: Professional recommendations RAGE cladding July 2014.
• Calculations and tests: Tests according to NF P 34-503-1:2024 interpreted per Recom. Prof. RAGE 2014 (wind Eurocode NF EN 1991-1-4+NA:2012) and annexes K, E and N for wind NV65 rules modified 2009.

Technical specifications

• Commercial reference: JI 92-500
• Use: trays for double-skin cladding (outer skin support, insulation integration)
• Length: 1000.0 mm to 13600.0 mm
• Width: up to 500.0 mm
• Available thicknesses and weights: 0.75 mm (8.83 kg/m²), 0.88 mm (10.36 kg/m²), 1.00 mm (11.78 kg/m²)
• Material: steel sheet S 320 GD (S 350 GD option on request)
• Coatings: Interieurcoating 912 (15 µ) for interior use; galvanized
• Compatibility: designed to accept spacers to optimize thermal performance
• Tests and calculations: conformity and test reports according to NF P 34-503-1:2024, RAGE 2014, Eurocode (NF EN 1991-1-4+NA:2012) and modified NV65 rules
