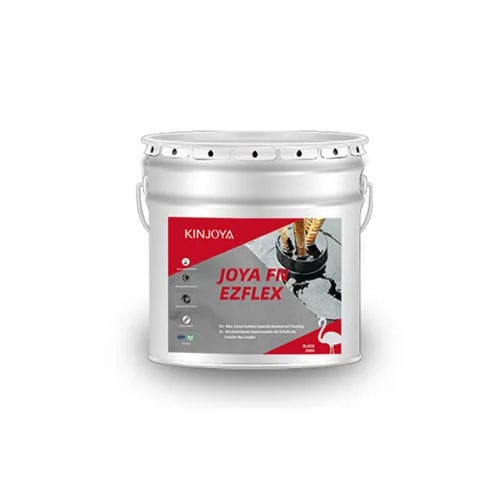

Repair coating FN EZFLEX

for swimming poolindustrialfor tunnel

Overview
The JOYA FN EZFLEX Rubber Asphalt Waterproof Coating is formulated from multiple macromolecule polymers and a special additive that acts as a catalyst so asphalt forms a stable chemical combination with various macromolecule polymers. The product can be applied by plastering, coating or pouring to prevent leakage and is compatible with a range of sheet membranes, making it suitable for demanding industrial and civil waterproofing works.

Application

• The product is suitable for base courses subject to large deformation and high stress, and for sections expected to undergo frequent movement; particularly indicated for mechanical constructions, cold-applied systems and projects where open flame is prohibited.
• Applicable to waterproofing of roofs, underground structures, pools and tunnels. For coating membranes, the approximate consumption is 1.3–1.4 kg/m2 per mm of thickness. Suitable substrates include concrete and color steel tiles.

Key Benefits

• High adhesion: achieves near-full microscopic contact with substrates such as concrete, metal and rolled materials; bonding strength exceeds 0.8 MPa.
• Self-healing capability: when the waterproof layer is punctured or micro-cracks form, the material flows to fill gaps, improving waterproof reliability.
• High elongation and deformation resistance: elongation > 15 mm (measured on 2 mm thickness), allowing adaptation to substrate movements (settlement, thermal expansion/contraction) to reduce cracking risk.
• Wide temperature tolerance: remains non-brittle at -20°C and stable (no flow) at 80°C.
• Flexible application methods: can be sprayed, brushed, rolled or trowelled; suitable for damp surfaces; can form a seamless layer in a single application to ensure efficient on-site execution.

Install Guide

• Surface preparation: ensure concrete surface is flat, clean, dry and free of oil; repair and level cracks or depressions with mortar.
• Coating application: use rolling, brushing or trowelling to apply primer/coating evenly, ensuring consistent thickness and full wetting of the substrate.
• Construction thickness: the coating can be applied to design thickness in a single pass and is suitable for use with asphalt-based membranes; brushing the coating while laying membranes improves adhesion.

Storage

• Sealed and packed in steel buckets with cover or plastic buckets.
• Avoid sunlight and rain; store in a dry warehouse. Store different product types separately and do not mix.
• Keep away from fire sources, prevent impacts, ensure ventilation; storage temperature should not exceed 40°C.
• Warranty under normal transport and storage conditions is 2 years.
• All performance data are nominal manufacturing values; actual values may vary with application methods, substrate conditions and environmental factors.

Technical specifications

• Model / Trade name: JOYA FN EZFLEX
• Composition: multiple macromolecule polymers + special additive (catalyst) enabling stable chemical combination with asphalt
• Typical consumption: approximately 1.3–1.4 kg/m2 per mm of membrane thickness
• Bonding strength: > 0.8 MPa
• Elongation: > 15 mm (measured for 2 mm thickness)
• Temperature performance: not brittle at -20°C; not flowing at 80°C
• Applicable substrates: concrete, metal, rolled materials, color steel tiles
• Construction methods: plastering, coating, pouring; compatible with spraying, brushing, rolling, trowelling; can be used with asphalt-based membranes and sheets
• Packaging: steel buckets with cover and plastic buckets
• Storage temperature limit: should not exceed 40°C
• Warranty: 2 years (normal transport and storage)
