Finishing coating CMCC

for swimming poolfor tunnellime

Product overview

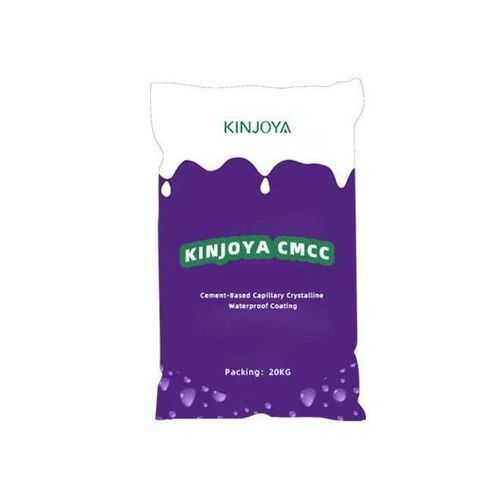

KINJOYA CMCC is a cement‑based capillary crystalline waterproofing coating in powder form. Composed of Portland cement, specially treated reactive compounds and silica sand, the product is fully compatible with concrete. Active ingredients penetrate capillary pores and react with free lime and water to form insoluble crystals that fill pores and densify the substrate for durable impermeability.

Application
Suitable for permanent waterproofing of cement concrete structures including basements, tunnels, sewage and potable water tanks, chemical plants, sewers, elevator shafts and swimming pools.

Key benefits

• Forms crystalline deposits within capillaries to provide impermeability and resistance to hydrostatic pressure (water head >120 m).
• Self‑healing: water‑activated crystallization seals cracks up to 0.4 mm.
• Breathable system: blocks liquid water while allowing gas diffusion, preserving concrete breathability.
• Resistant to temperature, humidity, UV exposure, carbonation and radiation.
• Chemical resistance to weak acids, alkalis, chlorides and hydrocarbons (e.g., gasoline, diesel), improving concrete durability.
• Integrates with the concrete matrix; the waterproof layer maintains performance under impact and mechanical stress.
• Compatible with subsequent plastering, painting or tiling finishes.
• Non‑toxic and suitable for potable water applications.

Install guide

• Substrate preparation: Ensure concrete is clean, sound, free of oil and loose material. Repair and level joints, cracks and voids; pre‑wet the substrate without leaving free water on the surface.
• Material mixing: Mix the powder with water at the manufacturer’s specified ratio and stir to a homogeneous consistency.
• Coating application: Apply evenly by brush, roller or trowel to the required thickness, ensuring full contact with the concrete substrate.

Storage

• Store in a cool, dry place protected from sunlight and rain.
• Do not store below 5°C or above 40°C.
• Values are nominal; actual performance may vary with application method, substrate condition and environmental factors.

Technical characteristics / specifications

• Type: Cement‑based capillary crystalline waterproofing (powder).
• Main components: Portland cement, treated reactive compounds, silica sand.
• Form: Powder to be mixed with water.
• Compatible substrates: Cement concrete and concrete structures.
• Maximum water head resistance: >120 m (manufacturer claim).
• Self‑sealing crack capacity: up to 0.4 mm.
• Functions: Catalytic crystallization, self‑healing, breathable waterproofing, chemical corrosion resistance.
• Chemical resistance: Resistant to weak acids, alkalis, chlorides, gasoline and diesel.
• Finish compatibility: Plastering, painting, tiling.
• Safety: Non‑toxic; suitable for potable water projects.
• Storage temperature: 5°C to 40°C.
