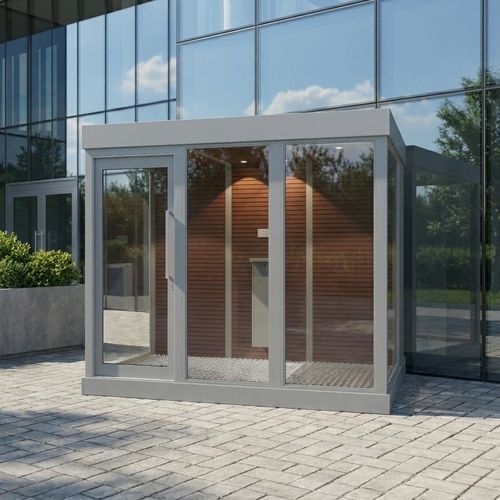

Outdoor smoking cabin SQ280

with filterwoodenstand-alone

Overview
The SQ280 outdoor smoking cabin is a modular, weather-resistant unit designed to accommodate up to 6 users while maintaining high safety and filtration standards. Constructed in extruded aluminium and tempered double glass, the cabin is suitable for outdoor installation and can be combined with additional modules to increase capacity.

Key features

• Certified quality and safety standards.
• Modular and customizable configurations (sizes, panels, doors, colours).
• High-efficiency filtration system with scheduled maintenance to sustain air-cleaning performance.
• Optional timer and sensor controls for lighting and HVAC to reduce energy use.

Recommended applications
The SQ280 is intended for outdoor public and semi-public areas where segregated smoking space is required: airports, hospital grounds, office complexes, stations and public buildings. Advanced filtration allows smokers and non-smokers to share nearby spaces without persistent smoke or odour nuisance. The base unit occupies 6.25 m² and can be sited on paved or prepared surfaces.

Benefits

• Removes smoke and airborne contaminants to improve local air quality.
• Reduces time lost on long smoking breaks by providing nearby dedicated space.
• Energy-efficient operation with sensor-triggered standby modes.
• Modular design simplifies installation, expansion and relocation.

Technology and operation
The cabin captures smoke at source and directs it through a multi-stage filtration system that removes particulates and harmful gases. Clean air is discharged back to the environment while contaminants remain trapped inside replaceable filters. Regular maintenance is recommended to maintain filtration efficiency. A certified, fireproof aluminium ashtray is provided inside for safe disposal of ash and cigarette waste.

Features (selection)

• Airflow: Variable speeds for standby and operating modes.
• Construction: Modular freestanding units, expandable or reducible.
• Power saving: Presence sensors and programmable timer for lights and HVAC.
• Doors: Manual or automatic door options with self-closing mechanisms.
• Customization: Optional LED screen, integrated ashtray sizes, custom colours and finishes.

Technical specifications

• Model: SQ280 Outdoor Smoking Cabin
• Dimensions (L x D x H): 2850 x 2150 x 2540 mm
• Minimum footprint: 6.25 m²
• Capacity: Up to 6 persons (depending on configuration)
• Weight (incl. filters): ≅ 1300 kg (standard), ≅ 1400 kg (AC version)
• Main materials: Extruded aluminium frame; tempered double-glazed windows; solid aluminium roof; chequered aluminium floor; MDF front panels
• Glass: 18 mm double glazing with 6 mm Argon-filled cavity
• Colours/finishes: Frame powder-coated RAL 9006 (grey) or RAL 9005 (black), other colours optional; wood panels in Mahogany or Maple (custom options available)
• Certifications: ISO 9001:2015, ISO 14001:2015; fireproof ashtray tested by DBI; tested as non-smoker protection system by I.F.I. Germany
