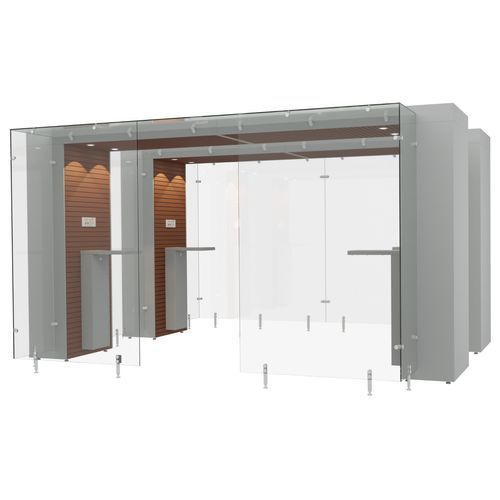

Indoor smoking cabin 2SPArea 4m

with filterwith built-in ashtraywooden

Product overview
To accommodate larger groups of simultaneous smokers our smoking cabins can be combined in pairs with glass panels. With our smoking cabins you will experience a high-performance quality product that will secure your environment, protection against passive smoking, dangerous gases and odour from cigarettes. The smoking cabins are meticulously designed to ensure that smoke and odour stay within the cabin and the powerful filtration system ensures fresh air both inside and outside the cabin. The smoking cabins materials are selected and tested thoroughly to give the best performance, and with our unique design the smoking cabins truly excite all customers or employees.

2SPArea 4m specific
Our 2SPArea 4m cabins provide a comfortable atmosphere with adjoining ashtrays allowing easy conversation among users. Up to 25 users they can be placed freely either in the middle of open spaces or alongside walls and in corridors. By focusing on atmosphere and wellbeing, our SPArea is building bridges between smokers and non-smokers allowing them to interact. Our smoking cabins make it possible for smokers and non-smokers to stay in the same room and still interact without disturbance from second hand smoke or odour. Added to this are improved safety and fireproofing. As such the 2SPArea 4m cabins with their almost limitless combinations offer a flexible, efficient and attractive alternative to dedicated smoking rooms.

Material & finish options

• Wood veneer options: Mahogany, Maple, Walnut, White, Black
• Main metal/steel finish options: Metal (default), Grey, Black; frame housing powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); other colours optional
• Front panel: Mahogany or Maple (other colours optional)

Design elements

• Door — Smokers can enter via an automatic door, providing accessibility for wheelchair users.
• Lights — LED spot lights that automatically turn on/off when people enter/leave the cabin.
• Ashtray — Certified, fireproof and odourless aluminium ashtray for safe collection of cigarette ends.
• Fan — High performance, highly efficient fan designed to deliver powerful airflow and cost reductions.

Filtration & operation

• System captures smoke before it leaves the cabin and directs it through an efficient filtration system that eliminates even the smallest particles; pollutants remain trapped in the filters.
• Sensor activation upon entry adjusts lighting and ventilation speed to reduce power consumption.

Features

• Adjustability: Variable airflow speeds for standby and operating modes.
• Power saving: Sensor activation and automatic adjustments reduce energy use.
• Modular construction: Easy to reduce or expand cabin size; freestanding and movable.
• Entrance options: Semi-Open, Soft Close Sliding Door, Automatic Door.
• Customisation (optional): LED screen, various sizes of integrated ashtrays, customised colours.

Technical specifications

• Dimensions (L x D x H): 4000 x 3700 x 2200 mm
• Main housing material: Frame housing: Steel SPCC 1.5mm; Front: Medium Density Fiberboard (MDF)
• Main housing colours: Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey) (other colours optional); Front panel: Mahogany or Maple (other colours optional)
• Glass: 8 mm tempered glass
• Leak tested: Yes
• Simultaneous users (recommended): Up to 25 persons
