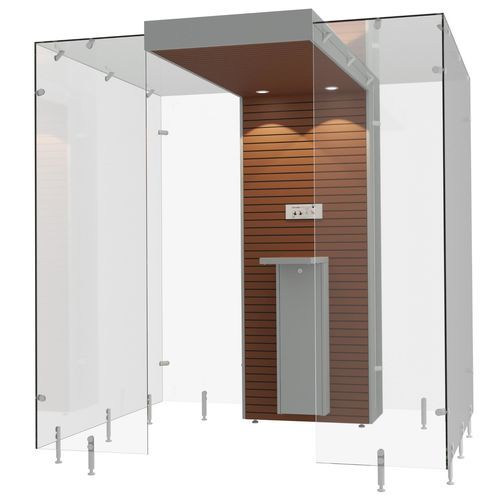

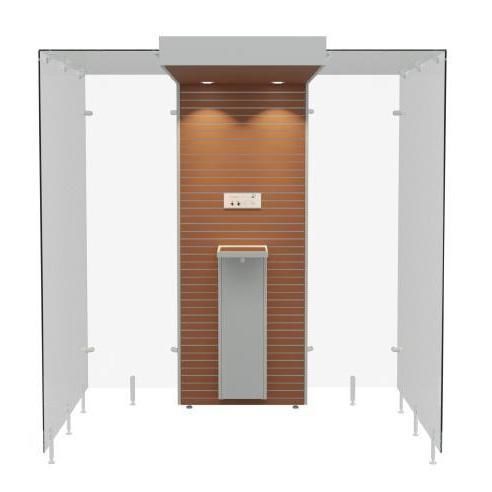

Indoor smoking cabin SP200

with filterwoodenopen

Product overview
The SP200 series from Smoke Solution is a modular smoking cabin designed to reduce exposure to second-hand smoke and odour while enabling smokers and non-smokers to share the same room. Available in Open, Semi-Open or Door configurations, the basic unit accommodates 6-8 simultaneous users and can be extended with additional modules. Units can be freestanding or placed alongside walls to fit site constraints.

Design and product elements

• Door – Optional automatic door for accessibility, including wheelchair access.
• Lights – LED spot lighting with automatic on/off activation on entry and exit.
• Ashtray – Certified fireproof, odour-reducing aluminium ashtray for safe disposal of cigarettes and ash.
• Fan – High-efficiency ventilation fan engineered for effective filtration and consistent airflow.

Technical information
Dimensions (L x D x H) – Weight incl. filters: 2000 x 2000 x 2200 mm – ≅ 400 kg
Main housing material: Frame housing: Steel SPCC 1.5 mm; Front: Medium Density Fiberboard (MDF)
Main housing colours: Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey) (other colours optional); Front panel: Mahogany or Maple (other colours optional)
Glass: 8 mm tempered glass
Leak tested: Yes
Simultaneous users: 6-8 persons

Features

• Adjustability: Variable airflow speeds for standby and operating modes.
• Power saving: Sensor activation on entry reduces power consumption of lighting and ventilation.
• Modular construction: Expandable or reducible modules; freestanding and movable configuration.
• Entrance options: Open, Semi-Open, Soft Close Sliding Door, Automatic Door.
• Customisation (optional): Integrated LED screen, multiple ashtray sizes, customised front colours.

Technical specifications

• Model: SP200
• Brand: Smoke Solution
• Wood veneer: Mahogany (also available in Maple and other finishes)
• Frame: Steel SPCC 1.5 mm
• Type: Open / Semi-Open / Door options
• Capacity: 6-8 persons (recommended simultaneous users)
• Dimensions (L x D x H): 2000 x 2000 x 2200 mm
• Weight incl. filters: ≅ 400 kg
• Main housing front: MDF
• Frame finish: Powder coated steel (RAL 9005 Black or RAL 9006 Grey; other colours optional)
• Glass: 8 mm tempered glass
• Leak tested: Yes
• Adjustability: Variable airflow speeds
• Power saving: Sensor-activated lighting and ventilation
• Modular: Expandable/reducible units; freestanding and movable
• Entrance options: Open, Semi-Open, Soft Close Sliding Door, Automatic Door
• Optional customisation: LED screen, integrated ashtray sizes, customised colours
