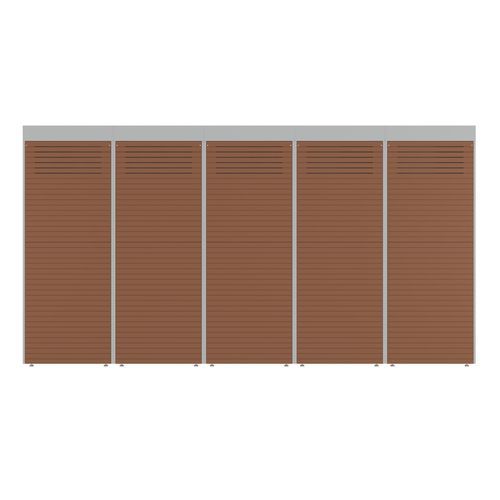

Indoor smoking cabin 5SR42

with HEPA filtermetalwooden

Overview
The 5SR42 AirCleaner is an indoor smoking cabin designed to contain and filter tobacco smoke and odors for up to 4 simultaneous users. Manufactured by Smoke Solution, the unit integrates tested filtration, ventilation and safety features suitable for controlled indoor smoking areas.

Advantages and purpose
Designed to replace poorly ventilated or unsightly smoking rooms, the 5SR42 provides an effective, modular and customizable solution to confine smoke and reduce exposure in surrounding areas. It meets industry standards for non-smoker protection and includes fire-safe ashtray solutions.

Design and equipment features

• Door: Automatic doors allowing wheelchair access.
• Lighting: Automatic LED lighting activated on entry/exit.
• Ashtrays: Fireproof, odor-reducing aluminium ashtrays for safe butt storage.
• Fans: High-performance, energy-efficient fans for reliable airflow and extraction.

Materials and finishes

• Front: MDF with wood veneer options (Mahogany, Maple, Walnut, White, Black).
• Frame: Steel SPCC 1.5 mm with powder coating RAL 9005 (Black) or RAL 9006 (Grey). Other colours optional.

Technical information
Dimensions (W x D x H) – Weight incl. filters: 820 x 470 x 2200 mm – ≅ 165 kg
Main housing material: Frame housing: Steel SPCC 1.5 mm
Front: Medium Density Fiberboard (MDF)
Main housing colours: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey). Front finishes: Grey‑Mahogany, Black‑Mahogany, Grey‑Maple, Black‑Maple, Grey‑Walnut, Black‑Walnut
Leak tested: Yes
Simultaneous smokers / Area: 4 persons / up to 20 m²
Certifications: ISO 9001:2015, ISO 14001:2015; fireproof ashtray tested by DBI; tested/certified as non-smoker protection system by I.F.I. Germany.

Features / Functions

• Adjustability: Variable airflow speeds for standby and running modes.
• Power saving: Sensor activation on entry reduces energy consumption.
• Modular construction: Easy to reduce or expand cabin size; freestanding and movable.
• Customization options: LCD screen, footrest, stickers, colours, filter options.

Filtration technology
The filtration system has been independently tested. The Smoke Solution Pro HEPA filter is individually tested to ensure performance.
Total filter efficiency (declared): Ozonators 0% / Ionizers 2% / Ordinary HEPA 36% / Smoke Solution Pro HEPA Filter 99.5%

Specifications

• Model: 5SR42
• Use: Indoor smoking cabin (AirCleaner)
• Dimensions (W x D x H): 820 x 470 x 2200 mm
• Weight (incl. filters): ≅ 165 kg
• Frame material: Steel SPCC 1.5 mm
• Front material: MDF (Medium Density Fiberboard)
• Frame colours: RAL 9005 (Black) or RAL 9006 (Grey); other colours optional
• Front finishes: Grey‑Mahogany, Black‑Mahogany, Grey‑Maple, Black‑Maple, Grey‑Walnut, Black‑Walnut
• Capacity: 4 persons / up to 20 m²
• Leak tested: Yes
• Certifications: ISO 9001:2015, ISO 14001:2015; DBI fireproof ashtray test; I.F.I. Germany non-smoker protection test
• Airflow: Variable speeds (standby / operation)
• Energy saving: Entry sensors for activation
• Modularity: Expandable / reducible; freestanding
• Customization: LCD, footrest, stickers, colours, filters
• Filter efficiency: Smoke Solution Pro HEPA 99.5%
