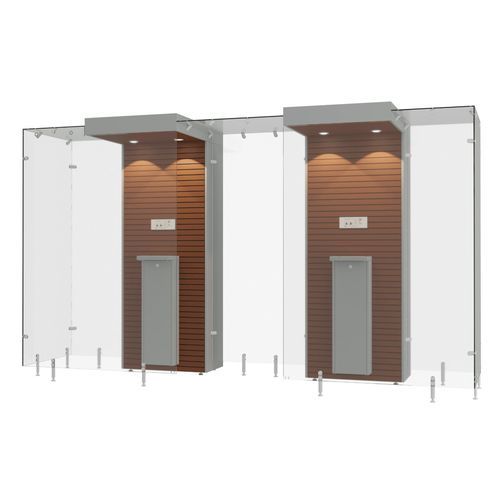

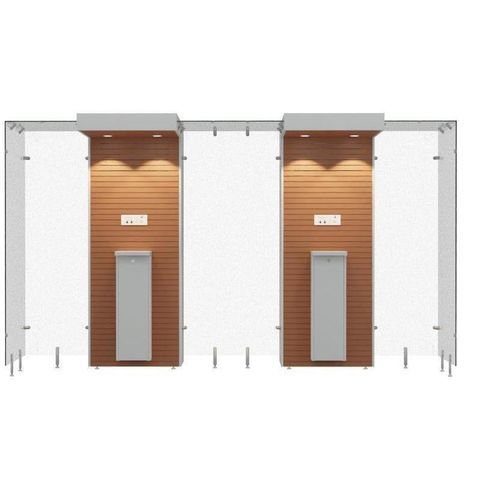

Indoor smoking cabin 2SP110

with filterstand-alonewith built-in ashtray

Overview
The 2SP110 smoking cabin is a modular enclosed smoking room designed for indoor commercial and industrial environments. It confines smoke and odour, protects non-smokers, and reduces exposure to second-hand smoke while enabling controlled ventilation and safe disposal of cigarette waste. Units are available from 3–6 simultaneous users and can be extended with additional modules. Smallest footprints start at 2.4 m2.

Design details

• Door: Optional automatic door available with wheelchair accessibility.
• Lighting: LED spot lights with presence detection to switch on/off automatically.
• Ashtray: Certified fireproof, odour-reducing aluminium ashtray for safe disposal.
• Fan: High-efficiency ventilation fan sized for effective capture and reduced operating cost.

Technical information
Dimensions (L × D × H) – Weight incl. filters: 3700 × 1100 × 2200 mm – ≅ 620 kg.
Main housing material: Frame: Steel SPCC 1.5 mm; Front panel: MDF.
Standard colours: Frame housing: Powder-coated steel RAL 9005 (Black) or RAL 9006 (Grey); front panel: Mahogany or Maple (other colours optional).
Glass: 8 mm tempered glass.
Leak tested: Yes.
Simultaneous users: 3–6 persons.

Features

• Adjustability: Variable airflow speeds for standby and operating modes.
• Power saving: Sensor-activated lighting and ventilation to reduce energy use.
• Modular construction: Easy to expand or reduce cabin size; freestanding and movable units.
• Entrance options: Open, Semi-Open, Door (manual, semi-automatic, automatic).
• Customisation (optional): LED screen, multiple integrated ashtray sizes, customised colours and finishes.

The technology behind the smoking cabin

• Capture before escape: Airflow design captures smoke at source and routes it to filtration.
• Filtration: Multi-stage filters remove particulates and gases; cleaned air is returned to the environment. Regular filter maintenance required.
• Fireproof ashtray: Certified aluminium ashtray designed to be odour-reducing and fire-resistant.

Specifications

• Model: 2SP110
• Capacity / Recommended simultaneous users: 3–6 persons
• Dimensions (L × D × H): 3700 × 1100 × 2200 mm
• Approx. weight incl. filters: ≅ 620 kg
• Main housing material: Steel SPCC 1.5 mm (frame); MDF front panel
• Front panel options: Mahogany or Maple (other finishes optional)
• Frame housing colours: Powder-coated steel RAL 9005 (Black) or RAL 9006 (Grey); other colours optional
• Glass: 8 mm tempered glass
• Leak tested: Yes
• Adjustability: Variable airflow speeds (standby and operating)
• Power saving: Sensor-activated lighting and ventilation
• Construction: Modular, freestanding and movable
• Entrance options: Open, Semi-Open, Automatic door options available
• Optional customisation: LED screen, integrated ashtray sizes, customised colours
