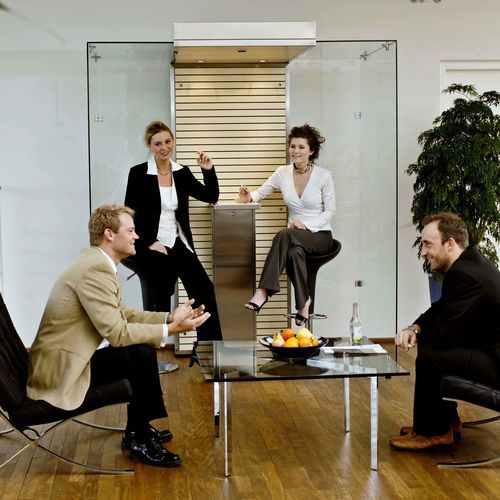

Indoor smoking cabin SP160

with filterwith HEPA filterfitted

Product overview
The SP160 is a modular indoor smoking cabin designed for workplaces and public buildings to contain smoke, odour and hazardous gases while returning cleaned air to the room. Standard configurations accommodate 3–6 simultaneous users and units can be extended with additional modules. Smallest configurations can be sited against walls; footprint from 1.2 m².

Design highlights

• Door: optional automatic door for accessible entry (wheelchair compatible).
• Lights: LED spotlights with motion sensors for automatic on/off.
• Ashtray: certified fireproof, odourless aluminium ashtray for secure waste containment.
• Fan: high-efficiency fan engineered to maintain controlled airflow through the filtration system.

Materials, colours and options

• Front panel: MDF with wood veneer options (Mahogany, Maple, Walnut, White, Black); other finishes available.
• Frame housing: Steel SPCC 1.5 mm with powder-coat finishes RAL 9005 (Black) or RAL 9006 (Grey); other RAL colours optional.
• Metal finishes: standard Metal, Grey, Black.
• Glass: 8 mm tempered safety glass.
• Entrance options: Open, Semi-Open, Soft Close Sliding Door, Automatic Door.
• Customisation: optional LED screen, customised ashtray sizes, bespoke colours and sizes.

Technical information
Dimensions (L x D x H) – Weight incl. filters: 2000 x 1600 x 2200 mm – ≅ 505 kg. Main housing material: Frame: Steel SPCC 1.5 mm — Front: MDF. Leak tested: Yes. Simultaneous users: 3–6 persons.

Features

• Adjustability: variable airflow speeds for standby and operating modes.
• Energy saving: sensor-activated lighting and ventilation reduce consumption.
• Modular construction: units can be reduced or expanded; freestanding and movable.
• Filtration: multi-stage filtration including Pro HEPA delivers high particle and gas capture; filtered air is returned clean and breathable.
• Fire safety: certified fireproof aluminium ashtray.

Technical specifications

• Model: SP160
• Recommended simultaneous users: 3–6 persons
• Dimensions (L x D x H): 2000 x 1600 x 2200 mm
• Approx. weight (including filters): ≅ 505 kg
• Frame housing material: Steel SPCC 1.5 mm
• Front panel material: MDF (veneer options: Mahogany, Maple, Walnut, White, Black)
• Frame housing colours: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); other colours optional
• Glass: 8 mm tempered glass
• Leak tested: Yes
• Entrance options: Open, Semi-Open, Soft Close Sliding Door, Automatic Door
• Adjustability: Variable airflow speeds
• Energy saving: Sensor-controlled lighting and ventilation
• Modularity: Expandable with additional modules
• Optional customisation: LED screen, customised ashtray sizes and colours
