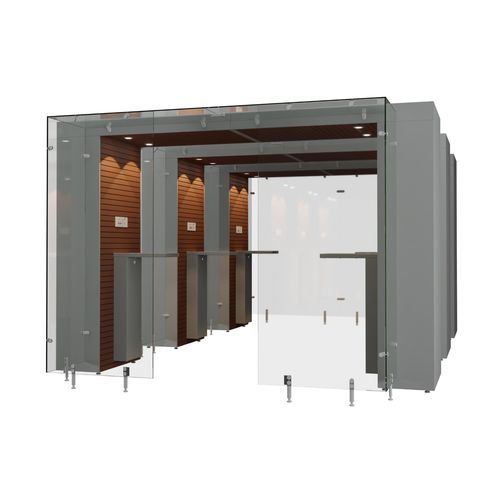

Smoking cabin with filter 3SP Area

with built-in ashtraymetalwooden

Overview
The 3SP Area smoking cabin is a semi-open, freestanding smoking solution designed for up to 30 simultaneous users. It confines smoke and odour within the cabin while returning cleaned air to the surroundings via a high-performance filtration system. Sizes start from 20.1 m²; the model detailed here measures 3200 x 5400 x 2200 mm.

User specifications

• Wood veneer: Mahogany (front panel options include Mahogany or Maple)
• Frame: Steel (SPCC 1.5 mm)
• Type: Semi-open
• Capacity: Up to 30 persons

Design features

• Door: Automatic entry option with wheelchair accessibility; other entrance options available (semi-open, soft close sliding).
• Lights: LED spot lights with presence activation (auto on/off).
• Ashtray: Certified fireproof, odourless aluminium ashtray for safe collection of cigarette waste.
• Fan: Powerful, energy-efficient ventilation fan ensuring effective airflow through the filtration unit.

Technical Information
Dimensions (L x D x H) – Weight incl. filters: 3200 x 5400 x 2200 mm – ≅ 1930 kg
Main housing material: Frame housing: Steel SPCC 1.5 mm; Front: Medium Density Fiberboard (MDF)
Main housing colours: Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); front panel finish: Mahogany or Maple (other colours optional)
Glass: 8 mm tempered glass
Leak tested: Yes
Simultaneous users: Up to 30 persons

Features

• Adjustability: Variable airflow speeds for standby and operating modes.
• Power saving: Sensor-activated lighting and ventilation reduce energy consumption.
• Modular construction: Units are freestanding, movable and can be reduced or expanded.
• Entrance options: Semi-open, Soft Close Sliding Door, Automatic Door.
• Optional customisation: Integrated LED screen, various ashtray sizes, customised colours and finishes.

Filtration and performance
The filtration system directs smoke through multi-stage filters that capture gases and particulate matter; filtered air is returned to the environment. Pollutants are retained in the filters—regular maintenance and filter replacement are required to maintain declared performance.

Technical specifications

• Model series: 3SP Area
• Dimensions (L x D x H): 3200 x 5400 x 2200 mm
• Approx. weight (incl. filters): ≅ 1930 kg
• Main frame: Steel SPCC 1.5 mm
• Front panel: MDF (Mahogany or Maple finish)
• Frame colours: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); other colours optional
• Glass: 8 mm tempered glass
• Leak tested: Yes
• Simultaneous users: Up to 30 persons
• Entrance options: Semi-Open, Soft Close Sliding Door, Automatic Door
• Adjustable airflow and sensor-activated power-saving functions
• Optional customisation: LED screen, integrated ashtrays, customised colours
