Indoor smoking cabin SPArea 4m

with filterstand-alonewith built-in lighting

Overview
The SPArea 4m smoking cabin is a modular indoor smoking room designed for up to 12 simultaneous users. Units can be freestanding or installed alongside walls and corridors, and paired with adjacent cabins using glass panels. The cabin contains smoke and odour within the enclosure while supplying filtered air to maintain acceptable air quality outside the unit.

Materials and colours

• Front panel veneer options: Mahogany, Maple, Walnut, White, Black.
• Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); other colours available on request.
• Main structure: Steel SPCC 1.5 mm; Front panel: Medium Density Fiberboard (MDF).
• Glass: 8 mm tempered glass.

Design & features

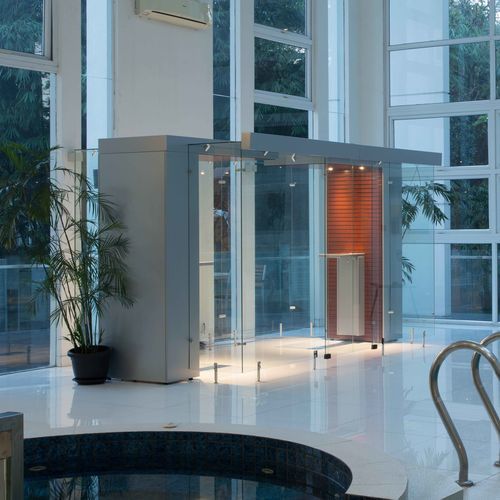

• Entrance types: Semi-open, soft-close sliding door, automatic door (unit shown: Semi-open).
• Automatic door option enables wheelchair accessibility.
• LED spot lights with occupancy sensor for automatic on/off.
• Integrated certified fireproof, odourless aluminium ashtray for safe disposal of cigarette ends.
• High-performance, energy-efficient fan for controlled airflow and reduced operating cost.
• Modular construction allows size reduction or expansion; units are movable and can be combined in pairs with glass panels.

Technical Information
Dimensions (L x D x H): 4000 x 2000 x 2200 mm
Main housing material: Frame housing: Steel SPCC 1.5 mm; Front: MDF
Frame housing colours: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey) — other colours optional
Front panel: Mahogany or Maple — other finishes optional
Glass: 8 mm tempered glass
Leak tested: Yes
Simultaneous users: Up to 12 persons

Features

• Adjustability: Variable airflow speeds for standby and operating modes.
• Power saving: Sensor-activated lighting and ventilation reduce energy consumption.
• Modularity: Easy to reconfigure, freestanding and movable.
• Customisation (optional): LED screen, different ashtray sizes, bespoke colours and finishes.

The technology behind the cabin
The ventilation system captures smoke at source and directs it through a high-efficiency filtration chain that removes particulates and odours before air is emitted. Pollutants are retained in replaceable filters; scheduled maintenance is required to maintain performance. The integrated aluminium ashtray is certified fireproof and odourless.

Specifications

• Model: SPArea 4m
• Capacity: Up to 12 persons
• Dimensions (L x D x H): 4000 x 2000 x 2200 mm
• Main frame: Steel SPCC 1.5 mm
• Front panel: MDF with wood veneer options
• Front veneer options: Mahogany, Maple, Walnut, White, Black
• Frame housing colours: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); other colours optional
• Glass: 8 mm tempered glass
• Leak tested: Yes
• Entrance options: Semi-Open, Soft Close Sliding Door, Automatic Door
• Adjustability: Variable airflow speeds for standby and operating modes
• Power saving: Sensor-activated lighting and ventilation
• Modularity: Can be combined with other cabins; freestanding/movable
• Integrated ashtray: Certified fireproof and odourless aluminium
• Filtration: High-efficiency filtration system to remove smoke particles and odour
