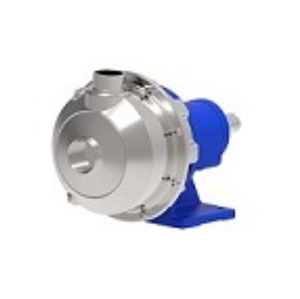

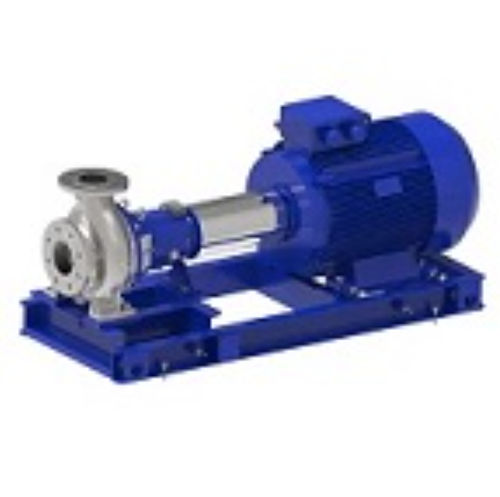

Water pump E-IXP

with electric motorcast ironstainless steel

Series
e-IXP (single-stage pumps by Lowara)

Overview
This page provides downloadable CAD deliverables for the Lowara e-IXP series of single-stage pumps. The content is organised as a table of model variants with per-variant links to 2D and 3D files and visual previews, enabling engineers and designers to access installation and integration geometry quickly.

Products and key attributes (per variant)

• Installation: Liquid End (primary installation type shown)
• Sizes covered: multiple sizes including 65-50-160, 50-32-200, 65-40-250, 100-65-200, 100-65-250 and others
• Flange pressure rating codes: [B] = PN16; [C] = PN25; [R] = CL150; [S] = CL300
• Casing material codes: [D] = Ductile iron; [N] = All stainless steels
• Lubrication codes: [G] = Grease (re-greasable); [O] = Oil
• Sensor connection: indicated per variant (Yes/No)
• Optimyze: indicated per variant (Yes = standard / No)

Notes on deliverables
For each model variant the table indicates available CAD packages and previews: 2D (.dxf) ZIP, 3D (.stp) ZIP, 2D PNG preview and 3D preview pages. Download links are shown per variant entry. Use the 2D files for layout/installation checks and the 3D files for interference checks and mounting design.

Technical specifications / usage guidance

• Model naming examples: IXP100-65-200 B D G S — letters encode flange rating, casing material, lubrication and sensor options
• CAD formats provided: .dxf (2D) and .stp/.stp.zip (3D)
• Typical uses: integration into piping layouts, support design, machine-room planning and fabrication drawings
• Availability: deliverables are indicated per variant in the table; verify the specific variant code before download
