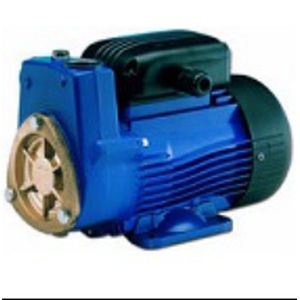

Water pump SP series

with electric motormetal

Overview
CAD centre for the Lowara SP pump series. CAD deliverables are provided for the listed SP models (SP5, SP5T, SP7, SP7T) including variants with and without IE2 motors. Available files support design integration and technical documentation.

Available models

• SP5 (IE2 Motor)
• SP5 (No IE2)
• SP5T
• SP7 (IE2 Motor)
• SP7 (No IE2)
• SP7T

Deliverables and file types

• 2D CAD files in .dxf format (typically provided as .zip archives)
• 3D CAD files in .stp format (typically provided as .zip archives)
• 2D preview images (PNG) for quick reference
• 3D preview pages available for model visualization

Applications

• Integration of pump models into system layouts and assemblies
• Preparation of installation and piping drawings
• Preliminary design checks and procurement documentation
• Collaboration with engineering and CAD teams

Notes

• Files are delivered as downloadable archives; check file naming and included metadata after extraction
• Variants include IE2 and non-IE2 motor options as listed; performance data and detailed specifications are not included on this CAD page
• For technical data (dimensions, performance curves, EAN, prices) contact the manufacturer or authorised distributor
• CAD compatibility: .dxf and .stp are widely supported by major CAD systems, but verify import settings for units and layers
