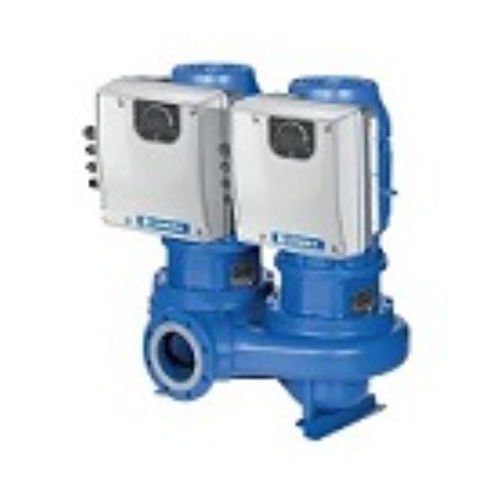

Water pump E-LNT SMART

electricmetalcentrifugal

Overview
End-suction centrifugal pumps from the e-LNT Smart series for close-coupled and rigid-coupled installation. Available in multiple sizes and power ratings, with single- and three-phase motor options and downloadable 2D/3D/BIM documentation.

Models / Table (examples)
Product name: LNTEE32-160/03/EP02

• Installation: Close Coupled
• Size: 32-160
• Phase: 1
• Nominal power: 0.37 kW
• eSM power supply: 02 = 1x208-240 V
• Document types available: 2D (.dxf, .wmf), 3D (.stp), BIM (Revit) (.rfa), BIM (IFC) (.ifc)

Product name: LNTEE32-160/03/EP04

• Installation: Close Coupled
• Size: 32-160
• Phase: 3
• Nominal power: 0.37 kW
• eSM power supply: 04 = 3x380-460 V
• Document types available: 2D (.dxf, .wmf), 3D (.stp), BIM (Revit) (.rfa), BIM (IFC) (.ifc)

Product name: LNTEE32-160/05/EP02

• Installation: Close Coupled
• Size: 32-160
• Phase: 1
• Nominal power: 0.55 kW
• eSM power supply: 02 = 1x208-240 V
• Document types available: 2D (.dxf, .wmf), 3D (.stp), BIM (Revit) (.rfa), BIM (IFC) (.ifc)

Product name: LNTEE32-160/07/EP04

• Installation: Close Coupled
• Size: 32-160
• Phase: 3
• Nominal power: 0.75 kW
• eSM power supply: 04 = 3x380-460 V
• Document types available: 2D (.dxf, .wmf), 3D (.stp), BIM (Revit) (.rfa), BIM (IFC) (.ifc)

Product name: LNTEE32-160/15/EP05

• Installation: Close Coupled
• Size: 32-160
• Phase: 3
• Nominal power: 1.5 kW
• eSM power supply: 05 = 3x208-240/380-460 V
• Document types available: 2D (.dxf, .wmf), 3D (.stp), BIM (Revit) (.rfa), BIM (IFC) (.ifc)

Product name: LNTEE32-160/22/EP04

• Installation: Close Coupled
• Size: 32-160
• Phase: 3
• Nominal power: 2.2 kW
• eSM power supply: 04 = 3x380-460 V
• Document types available: 2D (.dxf, .wmf), 3D (.stp), BIM (Revit) (.rfa), BIM (IFC) (.ifc)

Product group: LNTEE40-125 examples
Product name: LNTEE40-125/03/EP02

• Installation: Close Coupled
• Size: 40-125
• Phase: 1
• Nominal power: 0.37 kW
• eSM power supply: 02 = 1x208-240 V

Product name: LNTEE40-125/03/EP04

• Installation: Close Coupled
• Size: 40-125
• Phase: 3
• Nominal power: 0.37 kW
• eSM power supply: 04 = 3x380-460 V

Other LNTEE40-125 and LNTEE50-125 examples

• LNTEE40-125/05/EP02 — 0.55 kW; eSM 02
• LNTEE40-125/11/EP04 — 1.1 kW; eSM 04
• LNTEE50-125/05/EP02 — 0.55 kW; eSM 02
• LNTEE50-125/22/EP04 — 2.2 kW; eSM 04

Product group: LNTSE (rigid coupled) examples
Product name: LNTSE32-160/03/EP02

• Installation: Rigid Coupled
• Size: 32-160
• Phase: 1
• Nominal power: 0.37 kW
• eSM power supply: 02 = 1x208-240 V

Product name: LNTSE32-160/03/EP04

• Installation: Rigid Coupled
• Size: 32-160
• Phase: 3
• Nominal power: 0.37 kW
• eSM power supply: 04 = 3x380-460 V

Further variants

• Multiple power ratings across series: 0.37 / 0.55 / 0.75 / 1.1 / 1.5 / 2.2 kW
• eSM power supply codes: 02 = 1x208-240 V; 04 = 3x380-460 V; 05 = 3x208-240/380-460 V
• Document formats: 2D (.dxf, .wmf), 3D (.stp), BIM (.rfa, .ifc)

Other observations from the table

• Two main installation types: Close Coupled and Rigid Coupled.
• Sizes shown: 32-160, 40-125, 50-125 (model-dependent).
• Available phases: single-phase (1) and three-phase (3).
• Model codes follow the pattern LNTEE / LNTSE + size + power code + eSM code.

Technical specifications

• Series name: e-LNT Smart
• Brand: Lowara (a Xylem brand)
• Installation options: Close Coupled and Rigid Coupled
• Sizes: 32-160, 40-125, 50-125 (dependent on model)
• Power range: 0.37 up to 2.2 kW
• Phases: 1 and 3
• eSM power supply examples: 02 = 1x208-240 V; 04 = 3x380-460 V; 05 = 3x208-240/380-460 V
• Available documents: 2D (.dxf, .wmf), 3D (.stp), BIM (Revit) (.rfa), BIM (IFC) (.ifc)
• Naming examples: LNTEE32-160/03/EP02, LNTEE40-125/05/EP04, LNTSE32-160/...
