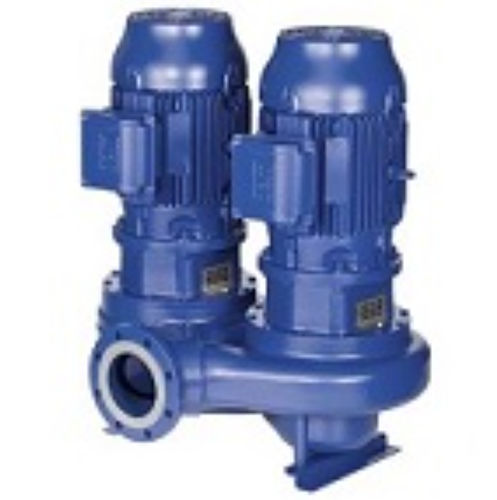

Water pump E-LNT

with electric motormetalcentrifugal

Series
e-LNT

Product list (table rows)
LNTS 80-160/30 P4 LNTS 80-160/40 P4 LNTS 80-200/220 L2 LNTS 80-200/370 L2 LNTS 80-200/370 W2 LNTS 80-200/55 P4 LNTS 80-200/75 P4 LNTS 80-250/110 P4 LNTE 100-160/110

• Installation: Close Coupled
• Size: 100-160
• Poles: 2
• Nominal Power: 11 kW
• Motor: Lowara PLM
• HVL: Without Hydrovar

LNTE 100-160/15

• Installation: Close Coupled
• Size: 100-160
• Poles: 4
• Nominal Power: 1.5 kW
• Motor: Lowara PLM
• HVL: Without Hydrovar

LNTE 100-160/150

• Installation: Close Coupled
• Size: 100-160
• Poles: 2
• Nominal Power: 15 kW
• Motor: Lowara PLM
• HVL: Without Hydrovar

LNTE 100-160/185

• Installation: Close Coupled
• Size: 100-160
• Poles: 2
• Nominal Power: 18.5 kW
• Motor: Lowara PLM
• HVL: Without Hydrovar

LNTE 100-160/22 LNTE 100-160/22A LNTE 100-160/30 LNTE 32-160/02 LNTE 32-160/02A LNTE 32-160/03 LNTE 32-160/07 LNTE 32-160/07A LNTE 32-160/11 LNTE 32-160/15 LNTE 32-160/22 LNTE 32-160/30 LNTE 40-125/02 LNTE 40-125/02A LNTE 40-125/02B LNTE 40-125/03 LNTE 40-125/11 LNTE 40-125/15 LNTE 40-125/22 LNTE 40-125/30 LNTE 40-160/02 LNTE 40-160/03 LNTE 40-160/05 LNTE 40-160/07 LNTE 40-160/22 LNTE 40-160/30 LNTE 40-160/40 LNTE 40-160/55 LNTE 40-200/05 LNTE 40-200/05A LNTE 40-200/07 LNTE 40-200/11 LNTE 40-200/30 LNTE 40-200/40 LNTE 40-200/55 LNTE 40-200/75

Documents available (by type)

• 2D drawings (.wmf)
• 2D drawings (.dxf)
• 2D drawings (.dxf) zip packages
• 3D models (.stp)
• BIM (Revit) packages (.rfa)
• 2D previews (PNG)
• 3D previews (HTML/3DM)

Notes
The page is a CAD center listing for the e-LNT series (Lowara). Each product row lists available CAD/BIM resources and, where provided, installation and motor/nominal power details.

Technical specifications

• Installation: Close Coupled (primary); Rigid Coupled option appears in filters
• Sizes available (examples from listing): 32-160, 40-125, 40-160, 40-200, 50-125, 50-160, 50-200, 50-250, 65-125, 65-160, 65-200, 65-250, 80-125, 80-160, 80-200, 80-250, 80-315, 100-160, 100-200, 100-250, 100-315, 125-160, 125-200, 125-250, 125-315, 150-200, 150-250, 150-315
• Poles: 2 and 4
• Nominal Power range (examples from listing): 0.25 kW; 0.37 kW; 0.55 kW; 0.75 kW; 1.1 kW; 1.5 kW; 2.2 kW; 3 kW; 4 kW; 5.5 kW; 7.5 kW; 9.2 kW; 11 kW; 15 kW; 18.5 kW; 22 kW; 30 kW; 37 kW
• Motor types: Lowara by Omega, Lowara LM, Lowara PLM, Lowara SM, WEG
• HVL options: With Hydrovar, Without Hydrovar
• CAD/BIM outputs: 2D (.wmf, .dxf), 3D (.stp), BIM (.rfa), PNG previews, 3D preview pages
