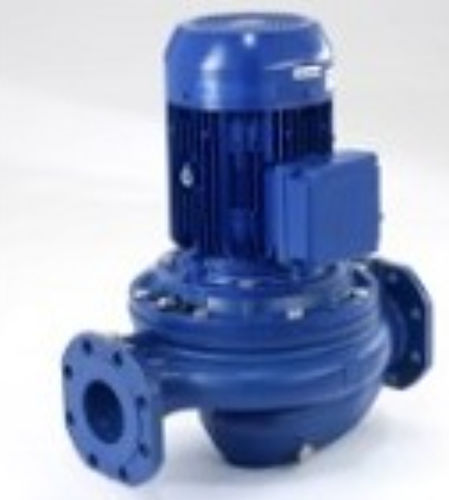

Water pump FCS

with asynchronous motorwith electric motormetal

Series
FCS (includes FCS and FCS4 variants).

Overview
This page lists the FCS range of single-stage centrifugal pumps with multiple size and power variants. For each model the page provides technical identifiers (size, phase, number of poles, nominal power) and downloadable CAD deliverables in 2D (.dxf) and 3D (.stp) formats, plus 2D PNG previews and embedded 3D previews.

Available models (extracted from table)
Representative models cover small to large sizes, for example: FCS 40-125/07 (Size 40-125, 3-phase, 2 poles, 0.75 kW), FCS 40-200/40 (Size 40-200, 3-phase, 2 poles, 4 kW), FCS 50-250/150 (Size 50-250, 3-phase, 2 poles, 15 kW), FCS 65-250/220 (Size 65-250, 3-phase, 2 poles, 22 kW), FCS 80-200/220 (Size 80-200, 3-phase, 2 poles, 22 kW), FCS 100-200/220 (Size 100-200, 3-phase, 2 poles, 22 kW), FCS4 100-250/55 (Size 100-250, 3-phase, 4 poles, 5.5 kW), FCS4 125-250/110 (Size 125-250, 3-phase, 4 poles, 11 kW). Full model list and per-model downloads are provided on the page.

Available document types (per model)

• 2D CAD: .dxf (zip packages)
• 3D CAD: .stp (zip packages)
• 2D preview images: PNG
• 3D preview: embedded 3D viewer pages

Notes
All listed variants are three-phase unless otherwise noted by poles. Models with 2 poles appear under the FCS designation; 4-pole variants use the FCS4 designation in the model name. CAD files are distributed as downloadable zip archives.

Technical specifications

• Series: FCS (includes FCS and FCS4 variants)
• Phases: 3 for all listed variants
• Poles: 2 or 4 depending on variant
• Sizes: multiple (examples: 40–125 up to 125–250; see model table)
• Nominal power range: from 0.75 kW up to 22 kW (several intermediate ratings)
• CAD deliverables per model: 2D (.dxf) and 3D (.stp) files (zip)
• Preview assets per model: 2D PNG images and 3D preview pages
