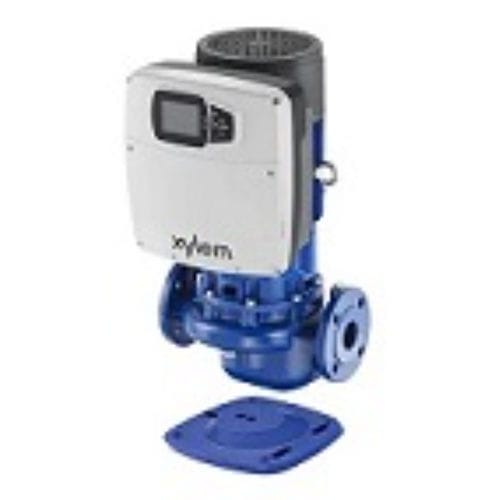

Water pump E-LNE HYDROVAR X

with electric motormetalcentrifugal

Product

• Series: e-LNE hydrovar X (CAD center listing)

Product table
LNEEX50-490/55/2 | Installation: Close Coupled | Nominal Power: 5.5 kW | Port nominal diameter: 50 mm
LNEEX50-590/75/2 | Installation: Close Coupled | Nominal Power: 7.5 kW | Port nominal diameter: 50 mm
LNEEX65-340/55/2 | Installation: Close Coupled | Nominal Power: 5.5 kW | Port nominal diameter: 65 mm
LNEEX65-360/75/2 | Installation: Close Coupled | Nominal Power: 7.5 kW | Port nominal diameter: 65 mm
LNEEX50-720/110/2 | Installation: Close Coupled | Nominal Power: 11 kW | Port nominal diameter: 50 mm
LNESX50-320/30/2 | Installation: Rigid Coupled | Nominal Power: 3 kW | Port nominal diameter: 50 mm
LNEEX65-120/15/4 | Installation: Close Coupled | Nominal Power: 1.5 kW | Port nominal diameter: 65 mm
LNEEX65-190/30/2 | Installation: Close Coupled | Nominal Power: 3 kW | Port nominal diameter: 65 mm
LNEEX100-110/40/4 | Installation: Close Coupled | Nominal Power: 4 kW | Port nominal diameter: 100 mm
LNEEX100-150/55/4 | Installation: Close Coupled | Nominal Power: 5.5 kW | Port nominal diameter: 100 mm
LNEEX100-280/110/2 | Installation: Close Coupled | Nominal Power: 11 kW | Port nominal diameter: 100 mm
LNEEX100-30/15/4 | Installation: Close Coupled | Nominal Power: 1.5 kW | Port nominal diameter: 100 mm
LNEEX100-370/150/2 | Installation: Close Coupled | Nominal Power: 15 kW | Port nominal diameter: 100 mm
LNEEX100-400/185/2 | Installation: Close Coupled | Nominal Power: 18.5 kW | Port nominal diameter: 100 mm
LNEEX100-430/220/2 | Installation: Close Coupled | Nominal Power: 22 kW | Port nominal diameter: 100 mm
LNEEX32-480/30/2 | Installation: Close Coupled | Nominal Power: 3 kW | Port nominal diameter: 32 mm
LNEEX40-420/30/2 | Installation: Close Coupled | Nominal Power: 3 kW | Port nominal diameter: 40 mm
LNEEX40-470/40/2 | Installation: Close Coupled | Nominal Power: 4 kW | Port nominal diameter: 40 mm
LNEEX40-720/75/2 | Installation: Close Coupled | Nominal Power: 7.5 kW | Port nominal diameter: 40 mm
LNEEX40-810/110/2 | Installation: Close Coupled | Nominal Power: 11 kW | Port nominal diameter: 40 mm
LNEEX50-320/30/2 | Installation: Close Coupled | Nominal Power: 3 kW | Port nominal diameter: 50 mm
LNEEX50-390/40/2 | Installation: Close Coupled | Nominal Power: 4 kW | Port nominal diameter: 50 mm
LNEEX65-490/110/2 | Installation: Close Coupled | Nominal Power: 11 kW | Port nominal diameter: 65 mm
LNEEX65-770/185/2 | Installation: Close Coupled | Nominal Power: 18.5 kW | Port nominal diameter: 65 mm
LNEEX80-210/40/2 | Installation: Close Coupled | Nominal Power: 4 kW | Port nominal diameter: 80 mm
LNEEX80-320/55/2 | Installation: Close Coupled | Nominal Power: 5.5 kW | Port nominal diameter: 80 mm
LNEEX80-410/75/2 | Installation: Close Coupled | Nominal Power: 7.5 kW | Port nominal diameter: 80 mm
LNEEX80-500/110/2 | Installation: Close Coupled | Nominal Power: 11 kW | Port nominal diameter: 80 mm
LNEEX80-520/150/2 | Installation: Close Coupled | Nominal Power: 15 kW | Port nominal diameter: 80 mm
LNEEX80-570/185/2 | Installation: Close Coupled | Nominal Power: 18.5 kW | Port nominal diameter: 80 mm
LNEEX80-630/220/2 | Installation: Close Coupled | Nominal Power: 22 kW | Port nominal diameter: 80 mm
LNESX100-110/40/4 | Installation: Rigid Coupled | Nominal Power: 4 kW | Port nominal diameter: 100 mm
LNESX100-150/55/4 | Installation: Rigid Coupled | Nominal Power: 5.5 kW | Port nominal diameter: 100 mm
LNESX100-280/110/2 | Installation: Rigid Coupled | Nominal Power: 11 kW | Port nominal diameter: 100 mm
LNESX100-370/150/2 | Installation: Rigid Coupled | Nominal Power: 15 kW | Port nominal diameter: 100 mm
LNESX100-400/185/2 | Installation: Rigid Coupled | Nominal Power: 18.5 kW | Port nominal diameter: 100 mm
LNESX100-430/220/2 | Installation: Rigid Coupled | Nominal Power: 22 kW | Port nominal diameter: 100 mm
LNESX125-100/30/4 | Installation: Rigid Coupled | Nominal Power: 3 kW | Port nominal diameter: 125 mm
LNESX125-140/40/4 | Installation: Rigid Coupled | Nominal Power: 4 kW | Port nominal diameter: 125 mm
LNESX125-180/55/4 | Installation: Rigid Coupled | Nominal Power: 5.5 kW | Port nominal diameter: 125 mm
LNESX125-270/75/4 | Installation: Rigid Coupled | Nominal Power: 7.5 kW | Port nominal diameter: 125 mm
LNESX125-340/110/4 | Installation: Rigid Coupled | Nominal Power: 11 kW | Port nominal diameter: 125 mm
LNESX150-130/55/4 | Installation: Rigid Coupled | Nominal Power: 5.5 kW | Port nominal diameter: 150 mm
LNESX150-170/75/4 | Installation: Rigid Coupled | Nominal Power: 7.5 kW | Port nominal diameter: 150 mm
LNESX150-210/110/4 | Installation: Rigid Coupled | Nominal Power: 11 kW | Port nominal diameter: 150 mm
LNESX150-270/110/4 | Installation: Rigid Coupled | Nominal Power: 11 kW | Port nominal diameter: 150 mm
LNESX32-480/30/2 | Installation: Rigid Coupled | Nominal Power: 3 kW | Port nominal diameter: 32 mm
LNESX40-420/30/2 | Installation: Rigid Coupled | Nominal Power: 3 kW | Port nominal diameter: 40 mm
LNESX40-470/40/2 | Installation: Rigid Coupled | Nominal Power: 4 kW | Port nominal diameter: 40 mm
LNESX40-600/55/2 | Installation: Rigid Coupled | Nominal Power: 5.5 kW | Port nominal diameter: 40 mm

Technical specifications

• Series name: e-LNE hydrovar X
• Manufacturer / Brand: Lowara (a Xylem brand)
• Available installation types: Close Coupled, Rigid Coupled
• Nominal power range (as listed): 1.5 kW up to 22 kW (examples shown: 1.5; 3; 4; 5.5; 7.5; 11; 15; 18.5; 22 kW)
• Port nominal diameters listed: 32, 40, 50, 65, 80, 100, 125, 150 mm
• CAD resources available on page for each model: 2D (.dxf), 3D (.stp), BIM (Revit .rfa), BIM (IFC) and 2D/3D previews
