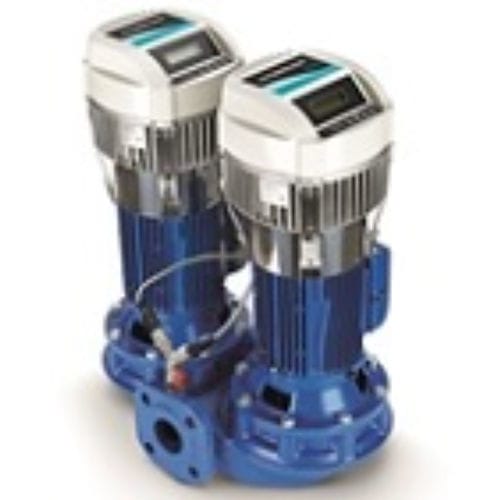

Water pump FCTE series

with electric motormetal

Series
FCTE CAD centre for Lowara (a Xylem brand) pumps. The page lists CAD resources and product variants for the FCTE series, showing available frame sizes, electrical configuration (phase, poles) and nominal power for each variant, plus downloadable CAD formats and online previews.

Table - Product variants and available resources
Product name: FCTE 100-160/110 | Size: 100-160 | Phase: 3 | Poles: 2 | Nominal Power: 11 kW | Documents available: 2D (.dxf) download, 3D (.stp) download, 2D Preview, 3D Preview
Product name: FCTE 100-200/185 | Size: 100-200 | Phase: 3 | Poles: 2 | Nominal Power: 18.5 kW | Documents available: 2D (.dxf) download, 3D (.stp) download, 2D Preview, 3D Preview
Product name: FCTE 40-125/07 | Size: 40-125 | Phase: 3 | Poles: 2 | Nominal Power: 0.75 kW | Documents available: 2D (.dxf) download, 3D (.stp) download, 2D Preview, 3D Preview
Product name: FCTE 40-200/40 | Size: 40-200 | Phase: 3 | Poles: 2 | Nominal Power: 4 kW | Documents available: 2D (.dxf) download, 3D (.stp) download, 2D Preview, 3D Preview
Product name: FCTE 50-250/150 | Size: 50-250 | Phase: 3 | Poles: 2 | Nominal Power: 15 kW | Documents available: 2D (.dxf) download, 3D (.stp) download, 2D Preview, 3D Preview
Product name: FCTE 65-250/220 | Size: 65-250 | Phase: 3 | Poles: 2 | Nominal Power: 22 kW | Documents available: 2D (.dxf) download, 3D (.stp) download, 2D Preview, 3D Preview
Product name: FCTE4 40-125/02 | Size: 40-125 | Phase: 3 | Poles: 4 | Nominal Power: 0.25 kW | Documents available: 2D (.dxf) download, 3D (.stp) download, 2D Preview, 3D Preview
Product name: FCTE4 100-250/55 | Size: 100-250 | Phase: 3 | Poles: 4 | Nominal Power: 5.5 kW | Documents available: 2D (.dxf) download, 3D (.stp) download, 2D Preview, 3D Preview
...additional variants listed on the source page with the same resource types.

Notes on resources
- For each variant the site provides CAD downloads in 2D (.dxf) and 3D (.stp) formats (zipped), and preview images for 2D and 3D. Previews are shown as PNG images. No PDF product datasheets are available on this page.

Technical specifications

• Series: FCTE (Lowara - a Xylem brand)
• Available sizes (examples): 40-125, 40-160, 40-200, 40-250, 50-125, 50-160, 50-200, 50-250, 65-125, 65-160, 65-200, 65-250, 80-125, 80-160, 80-200, 80-250, 100-160, 100-200, 100-250
• Phase: indicated as 3 for listed variants
• Poles: 2-pole and 4-pole variants available (e.g., FCTE and FCTE4 rows)
• Nominal power range shown: from 0.25 kW up to 22 kW (examples: 0.25; 0.37; 0.75; 1.1; 1.5; 2.2; 3; 4; 5.5; 7.5; 9.2; 11; 15; 18.5; 22 kW)
• CAD resources per variant: 2D (.dxf) downloads, 3D (.stp) downloads, plus 2D and 3D online previews (PNG and preview pages)
