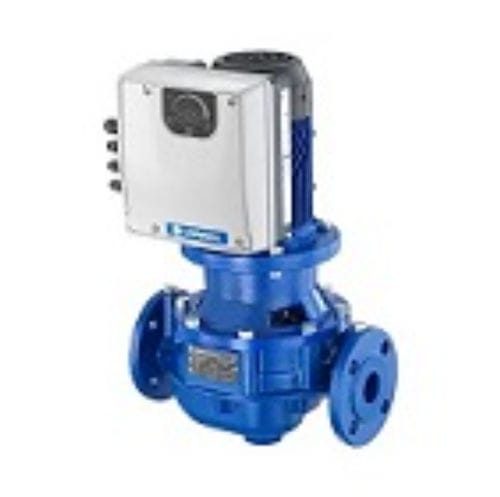

Water pump E-LNE SMART

with electric motormetalcentrifugal

Series
e-LNE Smart

Overview
The e-LNE Smart range comprises single-stage centrifugal pumps available in Close-coupled (LNEEE variants) and Rigid-coupled (LNESE variants) configurations. Multiple size and power combinations are offered, with eSM power supply options for single- and three-phase installations.

Representative product variants (product name — installation — size — phase — nominal power — eSM power supply)
LNEEE32-160/03/EP02 — Close Coupled — 32-160 — Phase: 1 — Nominal Power: 0.37 kW — eSM Power Supply: 02 = 1x208-240 V
LNEEE32-160/03/EP05 — Close Coupled — 32-160 — Phase: 3 — Nominal Power: 0.37 kW — eSM Power Supply: 05 = 3x208-240/380-460 V
LNEEE32-160/05/EP02 — Close Coupled — 32-160 — Phase: 1 — Nominal Power: 0.55 kW — eSM Power Supply: 02 = 1x208-240 V
LNEEE32-160/05/EP05 — Close Coupled — 32-160 — Phase: 3 — Nominal Power: 0.55 kW — eSM Power Supply: 05 = 3x208-240/380-460 V
LNEEE32-160/07/EP02 — Close Coupled — 32-160 — Phase: 1 — Nominal Power: 0.75 kW — eSM Power Supply: 02 = 1x208-240 V
LNEEE32-160/07/EP05 — Close Coupled — 32-160 — Phase: 3 — Nominal Power: 0.75 kW — eSM Power Supply: 05 = 3x208-240/380-460 V
LNEEE32-160/15/EP02 — Close Coupled — 32-160 — Phase: 1 — Nominal Power: 1.5 kW — eSM Power Supply: 02 = 1x208-240 V
LNEEE32-160/22/EP04 — Close Coupled — 32-160 — Phase: 3 — Nominal Power: 2.2 kW — eSM Power Supply: 04 = 3x380-460 V
LNEEE40-125/03/EP02 — Close Coupled — 40-125 — Phase: 1 — Nominal Power: 0.37 kW — eSM Power Supply: 02 = 1x208-240 V
LNEEE40-125/03/EP05 — Close Coupled — 40-125 — Phase: 3 — Nominal Power: 0.37 kW — eSM Power Supply: 05 = 3x208-240/380-460 V
LNEEE40-125/11/EP02 — Close Coupled — 40-125 — Phase: 1 — Nominal Power: 1.1 kW — eSM Power Supply: 02 = 1x208-240 V
LNEEE40-125/22/EP04 — Close Coupled — 40-125 — Phase: 3 — Nominal Power: 2.2 kW — eSM Power Supply: 04 = 3x380-460 V
LNEEE50-125/05/EP02 — Close Coupled — 50-125 — Phase: 1 — Nominal Power: 0.55 kW — eSM Power Supply: 02 = 1x208-240 V
LNEEE50-125/22/EP04 — Close Coupled — 50-125 — Phase: 3 — Nominal Power: 2.2 kW — eSM Power Supply: 04 = 3x380-460 V
LNESE (rigid coupled) variants follow similar naming and specification patterns (e.g. LNESE32-160/03/EP02, LNESE32-160/05/EP05, LNESE40-125/11/EP05, LNESE50-125/22/EP04) with installation type Rigid Coupled.

Available file types (per variant)
For each product variant the page provides technical CAD and BIM resources in multiple formats including 2D (.dxf), 2D (.wmf), 3D (.stp), BIM (Revit .rfa), BIM (IFC .ifc) and 2D/3D preview files. Links to these files are provided per variant on the product source page.

Characteristics / technical specifications

• Series name: e-LNE Smart
• Manufacturer / Brand: Lowara (a Xylem brand)
• Installation types: Close Coupled, Rigid Coupled
• Available sizes: 32-160, 40-125, 50-125
• Phase options: single-phase (1) and three-phase (3)
• Nominal power range (examples shown): 0.37 kW; 0.55 kW; 0.75 kW; 1.1 kW; 1.5 kW; 2.2 kW
• eSM Power Supply codes and meanings: 02 = 1x208-240 V; 04 = 3x380-460 V; 05 = 3x208-240/380-460 V
• Provided CAD/BIM/document types: 2D (.dxf, .wmf), 3D (.stp), BIM (.rfa, .ifc), previews (2D/3D)
• Product naming convention: model codes like LNEEE32-160/03/EP02 or LNESE40-125/11/EP05 indicating series variant, size, power/impeller designation and eSM power option
