Stainless steel step STAIRTREADS

GRPcorundum316 stainless steel

Product information

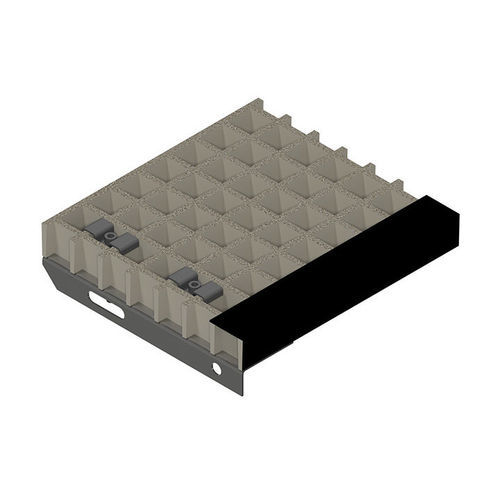

Moulded GRP stairtreads are manufactured with a closed, corundum-gritted safety nosing in black (optional yellow). The coloured nosing improves visibility of the leading edge.
The nosing design can be adapted according to span, load and required deflection limit. Variants include standardized laminated GRP flat sheets, massive mesh configurations and laminated GRP angle profiles; the appropriate type is to be agreed per project.
Various surface finishes are available. The standard stock surface is corundum-gritted (KB).
GRP stairtreads with screw-on angle side-plates in GRP or stainless steel (grade 1.4301/AISI304 and 1.4571/AISI316) are available on request.
Please refer to guidance regarding anti-skid properties.

Technical data (surface K)
Height H [mm] ; Bar thickness bottom (Su)/top (So) [mm] ; Mesh spacing (MT) [mm] ; Open mesh [mm] ; Nosing type ; Weight [kg/pc] ; Stock size [mm]/surface type
38 ; 5/7 ; 38,1 x 38,1 ; ~31 x 31 ; simple type nosing ; 5,5 ; 997 x 274 (K)
38 ; 5/7 ; 38,1 x 38,1 ; ~31 x 31 ; simple type nosing ; 18,2 ; 3321 x 274 (K)
38 ; 5/7 ; 38,1 x 38,1 ; ~31 x 31 ; reinforced nosing ; 25,0 ; 3321 x 282 (K)

Technical data (surface KB - corundum-gritted)
Height H [mm] ; Bar thickness bottom (Su)/top (So) [mm] ; Mesh spacing (MT) [mm] ; Open mesh [mm] ; Nosing type ; Weight [kg/pc] ; Stock size [mm]/surface type
38 ; 5/7 ; 38,1 x 38,1 ; ~31 x 31 ; simple type nosing ; 5,6 ; 997 x 274 (KB)
38 ; 5/7 ; 38,1 x 38,1 ; ~31 x 31 ; simple type nosing ; 18,5 ; 3321 x 274 (KB)
38 ; 5/7 ; 38,1 x 38,1 ; ~31 x 31 ; reinforced nosing ; 25,5 ; 3321 x 282 (KB)

Nosing / Side plates
Nosing types

• simple type nosing
• reinforced nosing

Side plates

• side plates GRP
• side plates stainless steel (grade 1.4301 / AISI304 and 1.4571 / AISI316)

Nosing / side plate fixing data
Lenght [mm] ; Hole distance [mm]
237 ; 120
274 ; 150
312 ; 180

References

• Converter Plattform Rostock
• Sewage Plant, Ülzen

Technical characteristics / specifications

• Material: Glass Reinforced Plastic (GRP)
• Standard construction height: 38 mm
• Bar thickness bottom (Su)/top (So): 5/7 mm
• Mesh spacing (MT): 38,1 x 38,1 mm; open mesh approx. 31 x 31 mm
• Stock surface: corundum-gritted (KB); other surfaces available on request
• Nosing: closed, corundum-gritted safety nosing in black (optional yellow); available as simple or reinforced
• Available weights and stock sizes (examples): simple nosing 5.5 kg/pc (997 x 274 mm), 18.2 kg/pc (3321 x 274 mm); reinforced nosing 25.0–25.5 kg/pc (3321 x 282 mm)
• Side plates: screw-on angle side-plates in GRP or stainless steel (1.4301/AISI304 and 1.4571/AISI316)
• Available lengths / hole distances for side plates: 237 mm / 120 mm, 274 mm / 150 mm, 312 mm / 180 mm
• Variants: standardized laminated GRP flat sheets, massive mesh sizes, laminated GRP angle profiles — to be specified per project
