Access ladder

fixedmetalpolyester

Product information
MEISER GRP ladders are manufactured from pultruded GRP profiles. They comply with DIN EN ISO 14122-4 and are designed in accordance with EN 131. Standard clear width is 400 mm (500 mm on request). Safety cage required from 3 m ladder length; coupling system applied for lengths over 6 m.

Components

• Ladder beam: square tube 50 x 50 mm (including connectors for lengths over 6 m) and end caps
• Ladder rungs: corrugated, non-slip round profile

Extras available (according to application)

• Floor mount kits with GRP feet
• Wall mount kits
• Safety cage for ladder lengths more than 3 m with 5 vertical support profiles; cage variants include:
  • a) lateral opening (left or right) for platform access
  • b) widening at top of ladder for simplified entrance & exit
  • c) 700 mm wide frontal exit
  • d) extendible handle bar
  • e) intermediate (resting) platform including guardrail & wall mounting kits

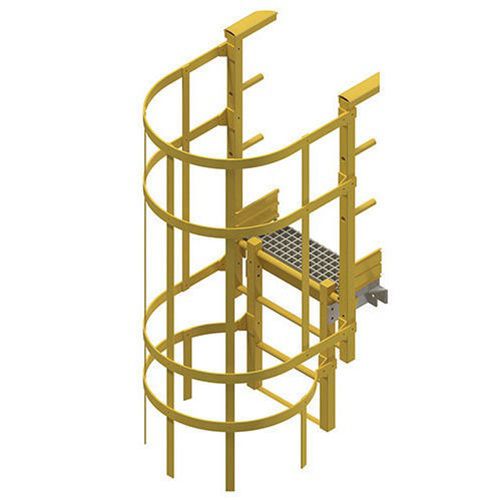

Intermediate (resting) platform
According to DIN EN ISO 14122-4 a ladder with a total length over 6 m must be split into at least two staggered sections separated by an intermediate platform. Access to the platform is secured by a laterally opened cage. The platform is made of GRP construction profiles, GRP guardrail and GRP grating.

Technical data
Ladder beam
DIMENSION | description acc. EN 13706 | weight/m
50 x 4.8 mm | QR 50x50/4.8 EN 13706-BGV-IFU E23 | 1.57 kg

Ladder rung
DIMENSION | description acc. EN 13706 | weight/m
32 x 5 mm | LS31 EN 13706-ZGV-IFU E23 | 0.8 kg

Detailed views (examples)
Standard ladder; Cage ladder with frontal exit; Cage ladder with lateral exit; Cage ladder with intermediate platform; Floor mount with GRP feet.
