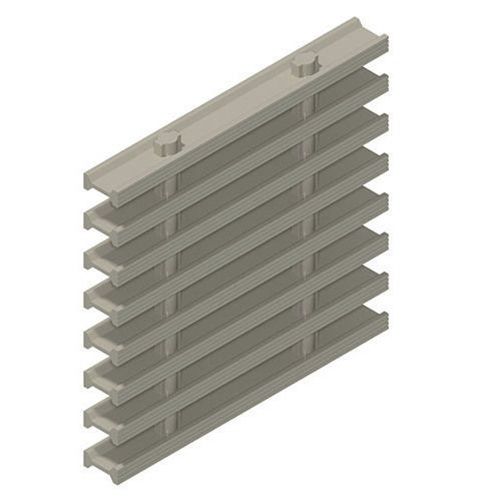

Polyester grating

fiberglassGRPfor stair treads

Product information
Pultruded GRP gratings consist of pultruded bearing bars and crossbars. Glass content is approximately 68%. Pultruded gratings provide higher stiffness than moulded GRP gratings, enabling longer spans or a reduced construction height depending on the application.

Construction and materials
The special arrangement and bonding of bearing bars and crossbars ensure long-term stability. Bearing bars are manufactured according to EN 13706 with longitudinal glass-fibre rovings, cross-reinforcing glass-fibre mats and a surface veil.

Sections and surface options
Pultruded gratings are available with I‑bar or T‑bar cross sections. Multiple surface finishes are offered; anti-slip properties and classification should be chosen according to the operational environment and safety requirements.

Accessories / Fixings

• GRP I + T Head bolt fastener: head bolt and retaining flange; available as X-BT for highly corrosive environments (e.g. offshore).
• GRP I + T Saddle clip M0300: flat disc upper part, countersunk screw M8 (length per request), washer 8.4 mm and self-locking nut M8.
• GRP I + T Saddle clip M2900: raised disc upper part, hex head screw M8 (length per request) and self-locking nut M8.

Technical specifications

• Material: Pultruded GRP (glass-reinforced polymer)
• Glass content: approx. 68%
• Construction: bearing bars and crossbars with longitudinal rovings, cross-reinforced mats and surface veil
• Standard: bearing bars manufactured according to EN 13706
• Cross section types: I-bar or T-bar
• Performance: higher stiffness compared to moulded GRP gratings allowing larger spans or reduced construction height
• Surface options: multiple finishes available; consider anti-slip classes per application
• Technical data: detailed technical documentation available (PDF)
