GRP railing

baroutdoorfor decks

Product information

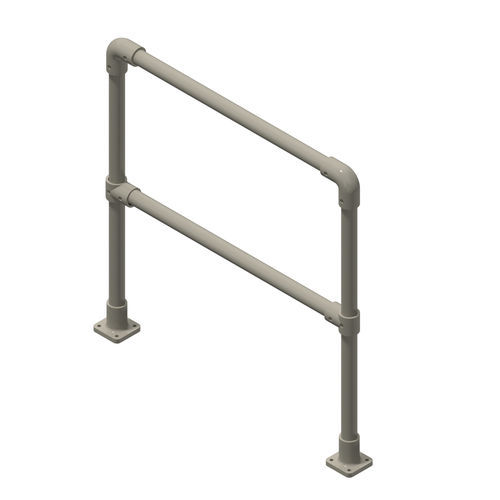

The GRP roundtube guardrail is composed primarily of 50 mm GRP round tubes. Special GRP fittings are used to join tubes; the tubes are bonded into the fittings and additionally secured with special rivets.
The roundtube guardrail is designed for use as a plug-in (modular) guardrail with segment lengths suitable for insertion.
Optionally, sections can be fixed to the substructure using GRP post feet.

Technical data — Post, handrail and kneerail (roundtube)
Dimension (ØA x D) | Description acc. EN 13706 | ~ Weight/m
50 x 4 mm | R50/4 EN 3706-OGV-IFU E23 | 1.12 kg

Kickplate
Dimension | Description acc. EN 13706 | ~ Weight/m
150 x 12 x 3 mm | Fl 150/3 EN13706-ZGV-IFU E17 | 0.99 kg

Detailed views

• Post foot GRP
• Plug-in guardrail section
• Fittings (glued and riveted connectors)

Characteristics / technical specifications

• Profile: 50 mm GRP round tube
• Post/handrail/kneerail dimension: 50 x 4 mm — R50/4 EN 3706-OGV-IFU E23 — approx. weight per m: 1.12 kg
• Kickplate dimension: 150 x 12 x 3 mm — Fl 150/3 EN13706-ZGV-IFU E17 — approx. weight per m: 0.99 kg
• Connection: special GRP fittings with bonding and rivet stabilization
• Installation: designed for plug-in assembly; optional GRP post feet for fixing to substructure
