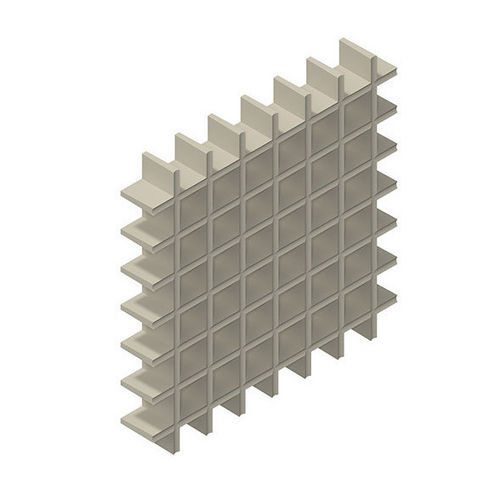

Fiberglass grating

GRPfor walkwaysfor industrial flooring

Product information
The bearing bars of moulded GRP grating run full height in both directions, providing uniform high load capacity. Glass content is limited to a maximum of 40% for technical reasons. Moulded GRP gratings are produced by a hand lay‑up process with subsequent heat curing in moulds.

Additional product features
The monolithic lattice structure of moulded GRP grating offers excellent resistance to a range of acids and alkalis. Different matrix (resin) systems and surface finishes are available. Anti‑skid surface options and defined slip resistance classes are offered for selection. Refer to the corrosion resistance chart and the technical data sheets for detailed performance and material information.

Accessories / Fixing clips

• GRP Saddle clip M0400: Deep‑drawn disc upper part, hex head screw M8 (length per request), washer 8.4 mm and self‑locking nut M8.
• GRP Saddle clip M0400‑Bohr: Deep‑drawn disc upper part and self‑drilling / self‑tapping screw (size and type per request).
• GRP Saddle clip M2700: M‑type upper part, cheese head screw M8 (length per request), washer 8.4 mm and self‑locking nut M8.
• GRP Saddle clip M2900: Raised disc upper part, hex head screw M8 (length per request) and self‑locking nut M8.
• GRP Double clamp V M0440: 2x deep‑drawn disc upper parts, clamp lower part, 2x hex head screws M8 (length per request) and 2x square nuts M8.
• GRP Double clamp V M2740: 2x M‑type upper parts, clamp lower part, 2x cheese head screws M8 (length per request) and 2x square nuts M8.
• GRP Double clamp V M2940: 2x raised disc upper parts, clamp lower part, 2x hex head screws M8 (length per request) and 2x square nuts M8.
• GRP Clamp B M27: M‑type upper part, clamp lower part, cheese head screw M8 (length per request) and square nut M8.
• GRP Clamp T M04: Deep‑drawn disc upper part, clamp lower part, hex head screw M8 (length per request) and square nut M8.
• GRP Clamp T M29: Raised disc upper part, clamp lower part, hex head screw M8 (length per request) and square nut M8.
• GRP Butt joint: C‑clamp and cheese head screw M8.
• GRP Head bolt fastener: Head bolt and retaining flange; for highly corrosive environments (e.g. offshore) also available as X‑BT.

Technical specifications

• Bearing bars run full height in both directions for uniform high resilience.
• Maximum glass content in grating: 40% (technical limitation).
• Manufacturing: hand lay‑up with heat curing in moulds (moulded production).
• Monolithic lattice structure providing high resistance to various acids and alkalis.
• Available matrix systems (resins) and surface finishes; anti‑skid options with defined slip resistance classes.
• Corrosion resistance chart and detailed technical data sheets available for selection and verification.
• Typical references / applications: industrial facilities, ports and quays, bridges and walkways, wastewater treatment plants, shipyards and offshore platforms.
