GRP railing

galvanised steelstainless steelbar

Product information

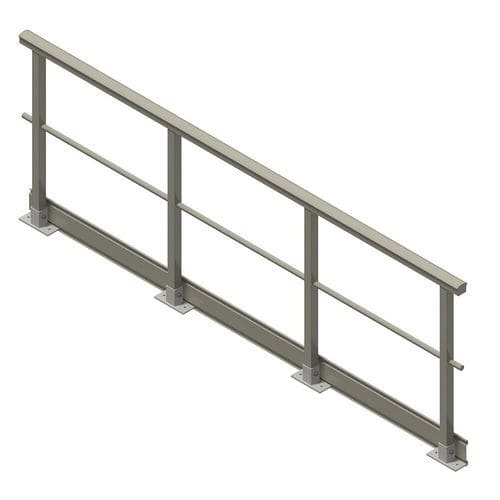

The GRP standard guardrail according to DIN EN ISO 14122-3 provides fall protection and access safety. It comprises an ergonomically formed handrail, a kneerail (available as single or double) and a kickplate. Connectors for handrail, kneerail(s) and kickplate are included in the scope of delivery.

Construction and materials
The system is manufactured in GRP (glass-fibre reinforced plastic). Posts are supplied as square tubes 50×50 mm or 60×60 mm depending on static requirements. The connection to the substructure can be executed by lateral screw fastening or with special post feet in GRP or galvanized/stainless steel.

Detailed views

• Lateral screwed connection
• Corner connection
• Straight joint
• Integration at stairs
• Post foot GRP
• Post foot steel
• End-caps (handrail cap, kneerail cap)

Characteristics / technical specifications

• Standard: DIN EN ISO 14122-3
• Components: ergonomically formed handrail, kneerail (single or double), kickplate
• Posts: square tubes 50×50 mm or 60×60 mm
• Connectors for handrail, kneerail(s) and kickplate included
• Connection to substructure: lateral screw connection or special post feet in GRP or galvanized/stainless steel
• Material: GRP (glass-fibre reinforced plastic); post feet optionally galvanized or stainless steel
• Technical data sheet available: gfk-tech-data-en-standard-guardrail.pdf
